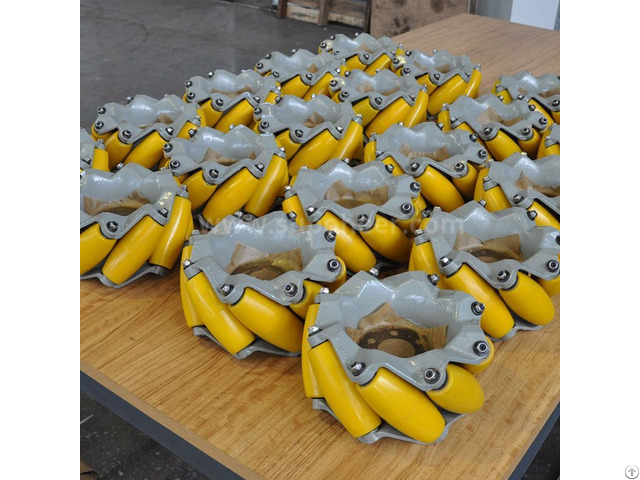

CMA-25 Mecanum Wheel mecanum wheel agv agv drive wheel AGV Accessories Product Description

The CMA series Mecanum Wheel provides a maximum load capacity of 4500 kg while maintaining a high standard of accuracy.

The use of patented integrated wheel hub molding technology maximizes the mechanical properties of the material.

CMA's full range of products are designed with rolling bearings, and the surface of the driven wheel is made of polyurethane, which has good performance in stability, quietness, reliability, and omnidirectionality, and can adapt to indoor and outdoor applications.

Characteristic

The wheel hub is integrally formed, high strength, High rigidity rolling bearing design

Load capacity covers 0~4500kg industrial grade quality Dimensions

Length: 254mm

Number of side wheels: 8

Width: 135mm

Wheel surface treatment: double-layer high temperature baking

Flange thickness: 10mm

Inner diameter of flange cavity: 114mm

Self weight: 12.5Kg

Flange screw: 6-M10 bolt

Wheel Material: Polyurethane

Bearing type: Rolling bearing

Connection form: Flange

Flange diameter: 100mm

Typical center hole: 50mm

Load capacity: 400Kg SUOFU is a professional foreign trade company engaged in import and export trade.

The company's main business scope includes handheld laser welding machine, automated guided vehicle AGV, etc.

If you want to know more, please click the link below.
