Cl Type Straightener Cum Decoiler - China

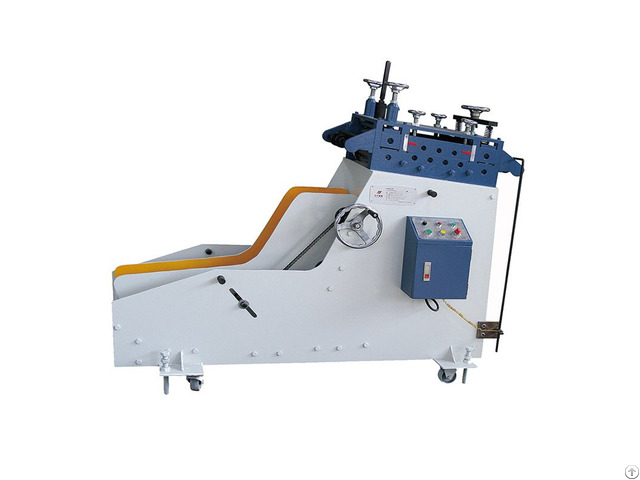

Cradle type decoiler cum straightener.

In coil cradle instead of expandable mandrel the coil is placed on driven rollers with adjustable side plates for centering.

The side plates are optionally provided with side rollers for prevention of damage in sides for delicate coils.

Specification: Features 1、Material decoiler and straightener function together in one structure, does not take up too much space.

2、Suitable for various of metal coils uncoiling and straightening .

3、It can adopt variable speed device, to control the discharge speed.

4、The material rack and straightener are integrated, chain drive, chrome plated roller, special endless speed change device controls the discharging speed, with strong durability.

5、The uncoiling adopts splint on both sides, driven by the feeding roller, which is pulled by leveling part to control the speed.

6、Leveling roller adopts chromium steel 40CR, after conditioning, high frequency quenching, hard chromium plating.

Surface hardness HRC60 degree, chrome plating thickness unilateral 0.05mm, high hardness, strong durability.

7、Leveling adjustment adopts four independent fine-tuning, which is controlled by scale, simple and practical.

8、Use L type iron frame induction frame induction, Mainly suitable for the material is lighter and smaller, the surface requirements are not high stamping production, It is often used with air feeder, with an economical punching automatic production line.

Structure ·The head of straightener 1、The head adopts design of parallel roller, the upper 3 rollers/lower 4 rollers, totally 7 refined roller structure

2、Adopting four point fine adjustment, which is more suitable for processing high-precision products.

Four point independent pressure is used to adjust the pressure of feeding wheel for incoming and outgoing materials, which can effectively prevent deviation and deformation of materials.

3、Support roller adopts galvanizing roller without power, material integrated forming, surface resistance to scraping grinding, using mechanical bearings, rotating flexible and durable.

4、It adopts cost iron hand wheel, and its surface is electroplated, it is the most traditional hand wheel.

5、The transmission part is protected by protective cover on both sides, equipped with window for convenient observation.
