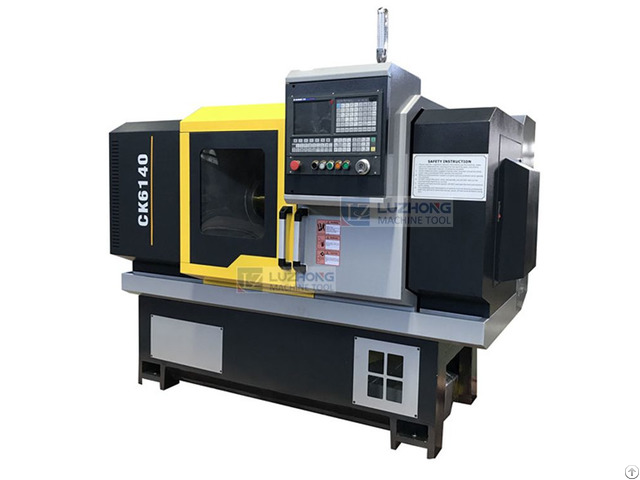

CK6140V CNC Lathe Machine

Flat Bed CNC Lathe Machine

CNC Horizontal Lathe Factory China

Features：

Four position electric turret

Frequency conversion stepless speed regulation

Standard configuration : manual chuck

Optional configuration: spring collet, hydraulic chuck, automatic feeding device, gang type tools

Application：

Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multile threads in metric, inch and other standards .

Product main technical Specifications:

Specifications Unit CK6140V

Max.

swing over bed mm Φ400

Max.

swing over cross slide mm Ф240

X/Z axis travel mm 280/750

Spindle nose A2-6

Spindle bore Ф48/82

Bar capacity Φ41/65

Spindle speed Ф48

Spindle speed rpm 150-2000/150-1800

Chuck size mm 200/250

Spindle motor KW 5.5/7.5

X/Z axis repeatability mm ±0.005

X/Z axis feed motor torque N.

m 4/6

X/Z axis rapid traverse m/min 8/10

Tailstock sleeve dia.

mm Ф60

Tailstock sleeve travel mm 100

Tailstock sleeve taper # MT4

Tool post type 4 station electtic tool post

Cutting tool shape size mm 20x20

Guide form Double Mountain Guide

Total power capacity KVA 11

Machine dimension(L×W×H) mm 2200X1160X1620

N.W. kg 1800
