Cjm250 Mini Lathe Machine - China

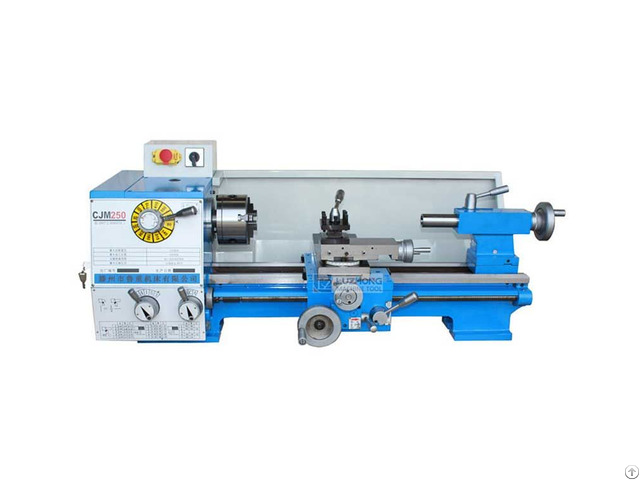

CJM250 Mini Lathe Machine

mini lathe, Bench Lathe

Lathe Machine

Product description:

1 - Most economical, widely useful hobby lathe.

2 - Power longitudinal feed allows threading.

3 - V-way a depot double triangle and rectangle side way.

4 - Easy access to safety switches.

5 - Spindle is supported by precision tapered roller bearing.

6 - Head stock be gear drive power.

7 - Large MT4 spindle bore.

8 - High precision chuck.

9 - Induction cuts with cross & longitudinal power feed

Product main technical Specifications:

Specifications Units CJM250

Max.

swing over bed mm 250

Max.

processing length mm 500

Max.

swing over cross slide mm 150

Spindle hole diameter mm 26

Taper of spindle mm No.

4

Spindle mm 80—1600r.p.m 12

The maximum horizontal stroke of cutter mm 130

The knife frame maximum longitudinal travel mm 75

Processing metric thread number 15

Processing range of metric threads mm 0.25-2.5

Processing inch thread number 9

Processing range of inch threads TPI 12-96

Longitudinal feed spindle turret at every turn mm 0.03－0.275

The transverse feed amount per turn spindle turret mm 0.015－0.137

Tailstock sleeve travel mm 60

Taper of tailstock sleeve mm No.

3

Electric machinery w 750W/380V/50HZ

Gross / net weight kg 180/163

Dimensions (length * width * height) mm 1130×550×405

Packing size (length * width * height) mm 1200×620×600
