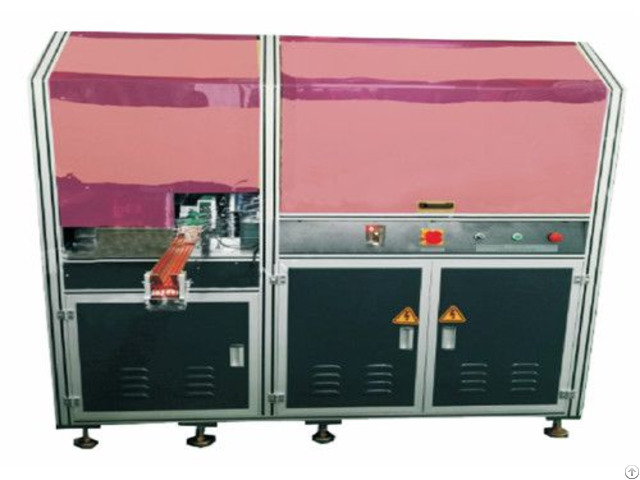

China Top Selling Good Quality Semi Auto Pvc Card Hydraulic Punching Machine - China

Product Model：KS-CPM-H000

Specifications：

Power：7.5KW

Power Source：AC380V/50Hz

Air Pressure：0.6 Mpa

Punching Accuracy：±0.1mm.

Punching Material：PVC, ABS, PET or mixed material

Material Size：length range：400mm -480mm, width range：282mm-452mm

Capacity：300~500 sheets/hour

Weight：1200Kg

Dimension：(L)1700mm X (W)2500mm X(H)1800mm

Features:

1 - Feeding unit: manual feeding is stable and easy to operate.

2 - Position Unit: applying high sensetive sensors to make the position very accurately.

3 - Transfer unit: Applying the high accuracy guide screw to make the materail running stably and accurately.

4 - Punching unit：Using the PLC to control the punching system to make the punching stably.

There are blank card punching and sensor marks punching method.

The punching accuracy reaches ±0.1mm.

And it also could work well with lamination deform card to reduce the NG rate.

5 - Sorting Unit: the machine could place the same position cards into the same output box, it could save the manpower to sort the cards.

6 - Output Unit: the output boxes could be designed from 1 box to 32 boxes depends on the client's request.

It could solve the sorting problem with mixed cards.

7 - Control Unit: applying the touch screen to control, it is easy and fast to operate.

Applying Area:

This machine is used for punching ISO standard cards or NON-ISO standard cards.

It applies the vision system to make the position and the sorting function.

It could save manpower cost.
