Double Table Panel Processing CNC Router china cnc wood turning lathe Wood CNC Router Double Table Panel Processing CNC Router with Mechanical safety standards, in line with national safety standards, in line with national safety and health regulations.

The equipment has good and comprehensive safety protection measures.

Advantages of SuperStar Woodworking CNC Router Machine

1 - Stable structure: thick-walled square tube welding, side plate tempering treatment, the bed is processed by the five-face milling machining center, aging treatment, firm and non-deformation.

2 - Modular structure design, simple and safe operation mode to ensure the speed and accuracy of operation.

3 - Linear automatic tool change system with a tool magazine capacity of 12 knives.

4 - Vacuum adsorption table, high-power vacuum pump, air volume up to 350m3 / h for each vacuum pump.

5 - Perfect lubrication system to extend the service life of the machine.

6 - Using gantry type movement, can freely process the material on the work surface, easy to operate.

7 - The Y-axis is driven by a dual motor to ensure smooth operation.

8 - The X/Y axis adopts high-precision rack drive for high speed and high precision.

9 - Z-axis adopts high-precision double-nut automatic anti-backlash ball screw drive with high precision.

10 - The three-axis adopts a square linear guide to ensure the high precision of the machine and bear heavy load.

11 - The wire uses imported high-flexible shielded cable Specification

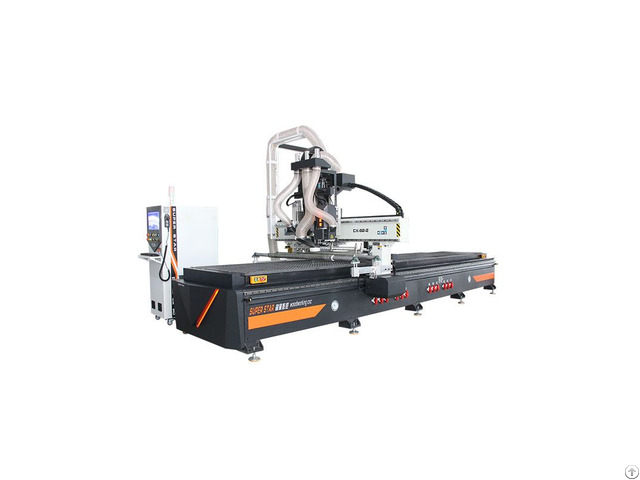

Model CX-B2-2 woodworking CNC router

Work area(mm) 1300x5000x250mm

Machine size 2300*7500*2300mm

Machine structure Thicker machine crust, V shape new design with LED light

Max travel speed 50m/min

Max carve speed 30m/min(depend on materials thickness)

Linear rails Y axis with 30mm and XZ axis 25mm Taiwan square linear rails

Transmission for XY HERION gear wheel transmission

Transmission for Z TBI ball screw transmission

Spindle power 9KW Italy HSD ATC air cooling spindle

Drilling head 4vertical drilling

Spindle speed 0-18000rpm/min

Tool magazine Linear tools magazine, 12 pcs

Inverter Delta 7.5kw frequency inverter

Worktable structure Double-layer 6-zone adsorption table

Vacuum pump JQT-S Air vacuum pump 7.5kw

Control system Taiwan LNC2200 system

Drive mode Japan YASKAWA drive

Motor for XY Japan YASKAWA servo motor 850W

Motor for Z Japan YASKAWA servo motor 1.5kW with brake

Reducer Japan Shimpo reducer

Cable High shielded cable

Sensor Auto tool sensor

Dust collect Double bags 5.5kw, 380V

Roller Pressure Roller

Mist sprayer Oil Mist sprayer for tool cooling

Work voltage AC380±10%, 50HZ 3phase(Do customized)

Format G code, HPGL 3D

Reposition accuracy ±0.05mm

Accessory box Standard

Package Air cushion packaging

Packing size(mm) 3600*2300*1850mm

New weight 230KGS

Warranty 1 years Applicable Industry

Cabinet Door Panels, Panel Furniture, Solid Wood Furniture, Indoor Composite Doors

Function: Automatic Tool Change, Cutting, Milling, Hollowing, Slotting, Punching, etc.
