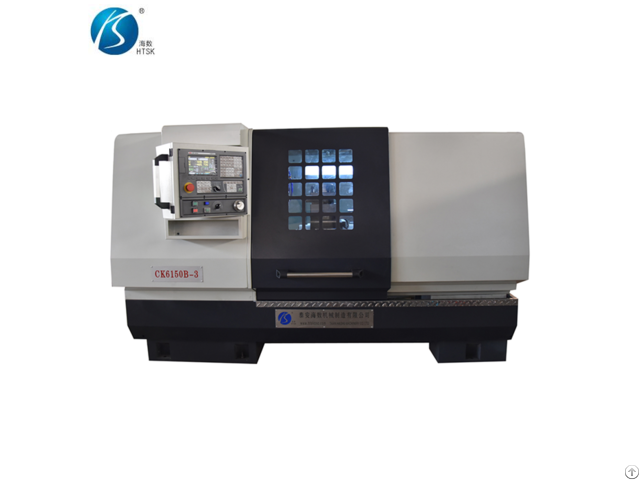

China Cnc Machine Cjk6150b - China

1 - Technical parameters

items

parameters

Maximum workpiece swing diameter over bed

Φ500mm

Dragged on board the maximum workpiece swing diameter

Φ290mm

Maximum length of workpiece

750/1000/1500mm

Range of spindle speeds

24, 9~1600rpm

Spindle bore diameter

Φ82mm

Skateboard maximum stroke (X)

290mm

Width of guide rails

390mm

The form of spindle head

D-8

Taper of spindle bore

1: 20

Turret Number of tool

4/6/8/ or row of knife

Tool cross-section specifications

25mm×25mm

Motor minimum setting unit

Z: 0.001mm, X: 0.001mm

Arbor fast forward speed

Z: 10m/min, X: 8m/min Tailstock quill taper

MT5 Tailstock quill maximum moving distance

150mm Power of main motor

7.5KW

The lathe Dimensions (L × W × H)

2600/2850/3350 mm×1300 mm×1750mm Lathe Net

2700/2900/3300kg 2 - main features

(1) 24 Gear Shift, High torque, high processing efficiency and high accuracy.

(2) Spindle diameter increases(φ82mm).

(3) The width of the bed: 390mm.

3 - Configuration

(1) Control system optional: Guangshu's GSK, Beijing's KND, Germany's Siemens, Japan's Fanuc, etc.

(2) Chuck optional: manual, pneumatic or hydraulic chuck.

(3) Tailstock optional: manual, pneumatic, hydraulic.

(4) Turret optional: Vertical four, horizontal six, horizontal eight, rows of knives and so on.

(5) Lubrication configuration: automatic oil lubrication system.

4 - Uses

Suitable for rough turning and precision machining of steel castings, iron castings and other materials.
