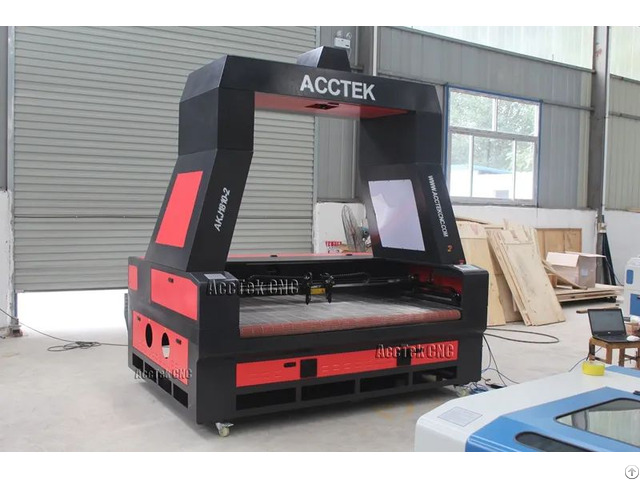

Ccd Camera Polyester Fabric Laser Cutting Machine For Textile - China
price: 3100.00 Dollar US$
Items Parameter
Product name Auto feeding Co2 laser cutting machine
Processing area 1800mm*1000mm Laser power 60-180W
Laser type Sealed Co2 glass laser tube
Laser head Two independent head&source
Controller Ruida laser system with keypad
Working table Auto feeding transmission table
Following up system With autofocus system
Cooling mode Circulation water cooling and protection system
Transmission and rails Taiwan HIWIN linear guide rails and Fulong belt and pinion Positioning accuracy ±0.05mm Compatible Software Laser cut /CorelDraw/AutoCAD/Photos hop Engraving speed 1-8000mm/min
Cutting speed 1-6000mm/min
Position system Red dot
Feeding system Auto feeding unit with correction function
Minimum shaping character letter 0.5mm, Chinese 0.5mm
Support graphic format DST, PLT, BMP, DXF
Driving mode Stepper motor
Air pump With
Exhaust fan With
Working voltage AC 110 - 220V±10%, 50 - 60Hz or depend on customer
Operating temperature 0-45°C
Operating humidity 5-95%
Options Up and down working table
Rotary attachment for column materials
Chiller CW3000-6000
Multi-head
Guarantee time 2years Advantage: This type Laser Cutting Machine with co2 laser tube is mainly used to cut computerized embroidery labels, irregular labels, embroidery craftwork, print fabric, textile, badge, trademark industries and other nonmetal materials.
This type Laser Cutter adopts CCD camera positioning automatically, high cutting speed, high precision, well cutting effect.
