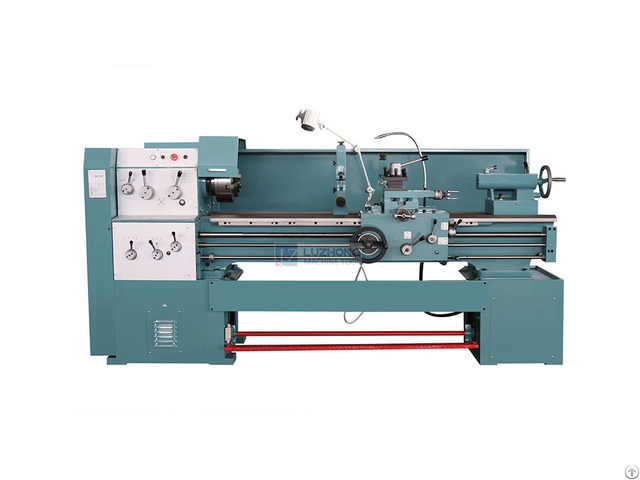

C6136 Lathe Machine - China

C6136 Lathe Machine

Horizontal Lathe Machine

Product description:

1 - Bed rail by super audio quenching and precision grinding.

2 - Precision grinding of the main shaft box, low noise.

3 - More thread type.

4 - Electrical safety performance is good, high reliability.

5 - With electromagnetic brake, the color of available options.

Product main technical Specifications:

Specifications C6136

Capacity Max.

Swing over bed 360mm Max.

rotating diameter 200mm Center distance 750, 1000, 1500, 2000mm Spindle hole 52mm

Spindle Spindle nose ISO-C6 Spindle tap MT6 Spindle speeds(Number) 36-1400rpm (12 Steps)

Feed Metric threads range(Kinds) 0.5-14mm (18 Kinds) Inch threads range(Kinds) 2-40/inch (28 Kinds) Moudle threads range(Kinds) 0.25-3.5mπ (17 Kinds) Compound rest travel 150mm Cross slide travel 180mm Cross-section size of toolshank 20×20mm2

Tailstock Dia.

of tailstock sleeve 75mm Taper of tailstock sleeve MT5 Travel of tailstock sleeve 160mm

Main motor power 4/5.5KW

Machine size

(L*W*H mm) Overall dimensions for750mm 2100×1150×1550mm Overall dimensions for1000mm 2350×1150×1550mm Overall dimensions for1500mm 2850×1150×1550mm Overall dimensions for2000mm 3350×1150×1550mm

Weight(kg) Weight for 750mm 1500kg Weight for 1000mm 1600kg Weight for 1500mm 1800kg Weight for 2000mm 2000kg
