C140 Light Steel Frame Roll Forming Machine - China

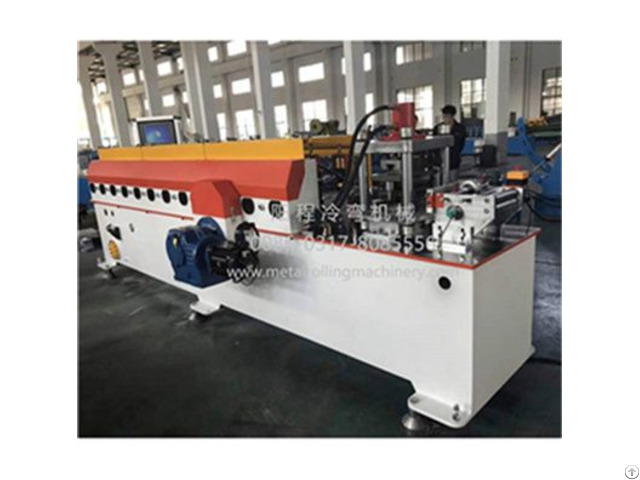

C140 Light Steel Frame Roll Forming Machine

Light Steel Frame Machine

The Door Frame Forming Machine can produce all frames of building construction.

SURFACE TREATMENT

A: Steel Door Frame Roll Forming Machine Applicable Material

1) Processing material: Q345, G550 galvanized steel strip

2) Material thickness: 0.75-1.2mm

3) Material width: 234mm

B: Light Steel Frame Roll Forming Machine Formed profiles

1) Profile sizes: width 140mm; web 41mm; lip 10-12mm

2) Length: the max 8000mm

3) Length accuracy: ±0.5mm

4) Forming speed: the max speed 35m/min, normally 2-3 tons per day

C: Electric Decoiler

1) Coil OD: Ф1400 mm (the max)

2) Coil ID: Ф508±10 mm

3) The max width: 300mm

4) Coil weight: ≤3000 kg

5) Expending or shrinking method: operate the handle to more the four connection rods to away from or close up to the cored shaft

6) Brake: cored shaft is double hold tightly

7) Driving method: decoil raw material automatically

D: Punching system

1) Punching mould material: Cr12MOV1

2) Multi-purpose punching devices:

Punching device 1 for web notch and lip notch, blanking force 40KN

Punching device 2 for notch, blanking force 30KN

Punching device 3 for dimple, blanking force 10KN

Punching device 4 for service hole, blanking force 10KN

Punching device 5 for lipcut, blanking force 30KN

Punching device 6 for truss notch, blanking force 40KN

3) Every punching device is unipunch, can be controlled independently

4) Distance of punching holes can be adjustable

5) The life of punching mould: 300000-500000 times, 1000000 times for frequently-used mould

E: Roll Forming Parts

1) Feeding device: with four guiding rollers

2) Roll forming device: 12 roller stations, one is to form and adjust the angle ( from 87 to 95) degree of bottom and web

3) Straightening device: with one pair of horizontal shafts and two dangling rollers

4) Profile leading device: with one set of leading rollers

5) Roller material: GCr15

6) Roller processing technic: CNC machining, heat treatment HRC58-60, then processed by CNC lathe, plating finally

7) Shaft material: 40Cr

8) Roller processing technic: CNC machining, quenching and tempering HRC28-32, then processed by CNC lathe, plating and polishing finally

9) Driving method: servo motor

10) Weight: about 3500kg

F: Sheet Forming Machine Cutting System 1) Cutter material: Cr12MOV1.

2) Cutting device: 3 pieces of blades to keep and cut the shape of profile

3) Cutting type: fully automatic cut to any length

G: Production receiving System

1) Receiving table length: 4m

2) Receiving method: receive formed profiles and side-slip them pneumatically to saving table

H: Control System

1) Main control system: One Lenovo laptop and a control box inside of based frames of the machine

2) Producing software: self-developed PLC computer control system with inveter

3) Designing software: Vertext BD type

4) Leaser Printing Device: USA Matthews Leaser Printing Device for painting spray logo and installation indicating number

5) Remote-control device: ireless remote-controller controls machine to go forward or backward or stop

6) Brands of main components: PLC(self-developed), Relay (French Schneider), proximity switch(French Schneider), Encoder(Japanese Omron), Servo Motor (Xinjie) All those components takes with International Warranty Service

I: Servo System and Hydraulic System

1) Servo motor: 5.5kw, taking with precision planetary gear reducer

2) Hydraulic Station: 7.5kw, hydraulic oil injection 200 litre

3) Brands of main components: solenoid valve (Germanic Rexroth)

4) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

J: Attached Components and Spare Parts

1) 2 sets of punching poles and down moulds, one set of tools

2) Protective cover: totally-enclosed type

3) Manual operation
