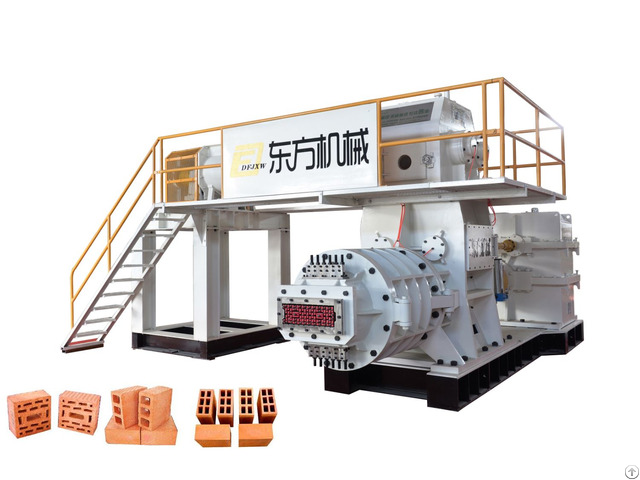

Brick Machine New Generation Jky70 65 Double Stage Vacuum Extruder - China
price: 70000.00 Dollar US$
Updated JKY 70-65 double-stage vacuum extruder is sepcially used for the producing of block bricks.
It is also applied to the line for producing rectangular bricks and perforated hollow bricks with shale, coal gangue and fly ash as the raw material.
Fujian Xindongfang Machinery Co., Ltd. independently developed a large-section high-speed pneumatic multi-function blanking machine, a servo automatic control system that is efficient and stable, a robotic blanking machine, an automatic blanking system, and a new-generation JKY70 / 65 large-scale vacuum extruder.
Mature and stable, suitable for tunnel kilns with a cross section of 4.6 meters to 9.6 meters, with an annual output of 50 million to 200 million (folded bricks) new wall material automatic production line equipment, which has been widely used worldwide.
Type/Technical Parameters: JKY70/65-4.0 Production Capacity (KPI, Piece/H): 35000-45000 Allowable Pressue(MPa): ≤4.0 Vacuum Degree(MPa): ≤-0.092 Motor Power(Kw): 185+400 Appearance Size(Lxwxh)/mm: 6500X6500X 3500 Weight(Kg): 38000
Company Contact:
- Posted By: Fujian New Oriental Machinery Co., Ltd.
- Phone: +8613959588328
- Address: No. 98 Linan Industrial Park, Xianyou County, Fujian Province, putian , China
- Email:
- Website: http://www.dfjxw.com/
Published date: August 20, 2020
- Business Description: We are China new oriental machinery Co.,Ltd, we sell Sintered brick making machine include Crusher/Raw Material Crushing Treatment Serie,Sieving Machine,Mixer,Feeder,Extr uder/Extrusion Brick Machine Series,Automatic Cutting Series,Automatic Stacking System,Kiln Equipment Series.
