Brick Machine Jky60 60 Double Stage Vacuum Extruder 2 Mud Strip Outlets - China
price: 60000.00 Dollar US$

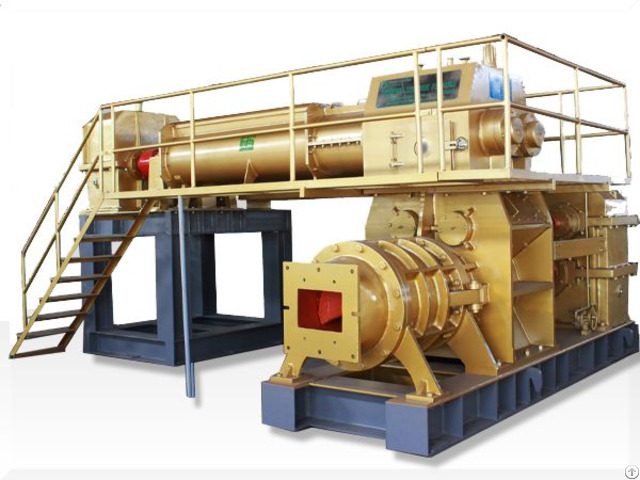

JKY60/60 large-scale vacuum extruding machine is a two-stage vacuum extruder specially designed to produce perforated brick.
The double strip design craft, uses the vacuum to squeeze out, the two-stage agitation, two electric motors bring along divided reducer through the axial air operated clutch, actuate the agitation to squeeze out separately and squeeze out with the formation.
The machine applies to pages of rock, coal gangue, fly ash as raw materials to produce high holes rate of hollow bricks.
Through quenching and tempering, quenching, heat treatment and other crafts and universal joint connector, the reducer with the independent all steel structure, improves the stability of performance and service life very effectively.
Type/technical parameters: JKY60/60-4.0 Production capacity(KPI, piece/h): 22000-25000 Allowable pressure(mpa): ≤4.0 Vacuum degree(mpa): ≤-0.092 Motor power(kw): 110+280 Appearance size(LxWxH, mm): 5400X5000X2900 Weight(kg): 28500
Company Contact:
- Posted By: Fujian New Oriental Machinery Co., Ltd.
- Phone: +8613959588328
- Address: No. 98 Linan Industrial Park, Xianyou County, Fujian Province, putian , China
- Email:
- Website: http://www.dfjxw.com/
Published date: August 20, 2020
- Business Description: We are China new oriental machinery Co.,Ltd, we sell Sintered brick making machine include Crusher/Raw Material Crushing Treatment Serie,Sieving Machine,Mixer,Feeder,Extr uder/Extrusion Brick Machine Series,Automatic Cutting Series,Automatic Stacking System,Kiln Equipment Series.
