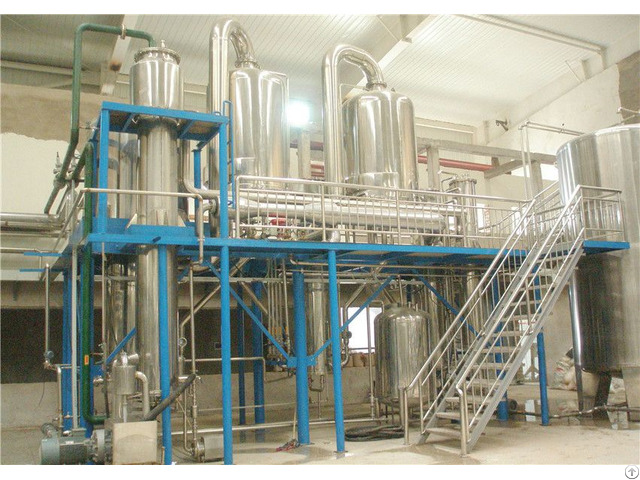

Bone Skin Fish Gelatin Muti Effect Evaporator Processing Equpment - China

bone/skin/fish gelatin muti-effect evaporator gelatin processing equpment Characteristics：

Tri-effect evaporation plant with thermal vapour re-compressor has specific steam consumption 27%, which is better than 34% of tri-effect evaporator.

It is equivalent to four-effect evaporator.

It is high heat efficiency and save energy.

The product auto-fast flow by pressure of system without pump, a very gentle treatment by the low temperature and short residence ensure the top quality gelatin.

The system is on auto-operating running.

Sanitary grade pipeline attaches CIP cleaning system.

The equipment is made of stainless steel and polished.

Capacity: Gelatin 3000t/y, 2000t/y Control Mode: automatic control (PLC control-feed rate, steam temperature, pressure, level, condensate pressure, cooling temperature are auto-control)

The Main Fittings: balance tank, pre-heater, 1st, 2nd & 3rd evaporator, condenser, feed pump, outlet pump, condensate pump, vacuum pump, vapour re-compressor, panel and sanitary pipeline

The equipment is made of stainless steel and polished.

Company Contact:

• Posted By: Tianjin Wanfeng Chemical Engineering Equipment Co Ltd

• Phone: 86-22-26429421

• Address: Panzhuang Industrial Zone， Ninghe District， Tianjin, tianjin , tianjin , China

• Email:

• Website: http://www.gelatinequipment.cn

• Business Description: Contact person: Rose Liang

  Phone: +86 13820752757

  Email: zhurong tj@126 - com

  sales-wanfeng@ gelatinequipment.

  cn

  Skype ：+86 13820752757

  Whats app: +86 13820752757

  Website: www.

  g elatinequipment.

  cn

  Compa ny Description:

  Tianjin Wanfeng Chemical Engineering Equipment Co., Ltd was founded in 1995 and is located in Panzhuang Industrial Zone, Ninghe District, Tianjin, China.

  It has land cover 26500㎡ and building area is 13900㎡, as a professional company of designing and manufacturing gelatin equipment, we supply full set of gelatin production line, which are mainly including Treatment Washing and Neutralization equipment, Extractor, Membrane filter, Four-effect evaporator, Evaporative sterilizer, Band dryer, Votator, Dehumidifier, Filter, Grinder, Gelatin Blender , Plant of Gelatin Grinder Conveyor , Ion-exchange system , Vacuum dryer , Cutter and etc.

  We also provide chain service of design, installation, testing and training.

  We have professional engineers who have accumulated rich experience in gelatin production, with in-depth experience in manufacture of gelatin equipment.

  We have attained an outstanding position in supplying reliable advanced equipment for gelatin industry.

  Up to now, company has obtained 8 national patents, 1 of them is national invention patent, and authorized by Chinese Government as High-New Technical Enterprise.

  The equipment have been exported to India, Australia, Thailand, Malaysia and Egypt.

  Our customers come from all over China, as well as the famous gelatin company of the world, such as Gelita (Germany), Russelot (America), Sterling (India), Gelic (Japan), PB (Belgium), etc.
