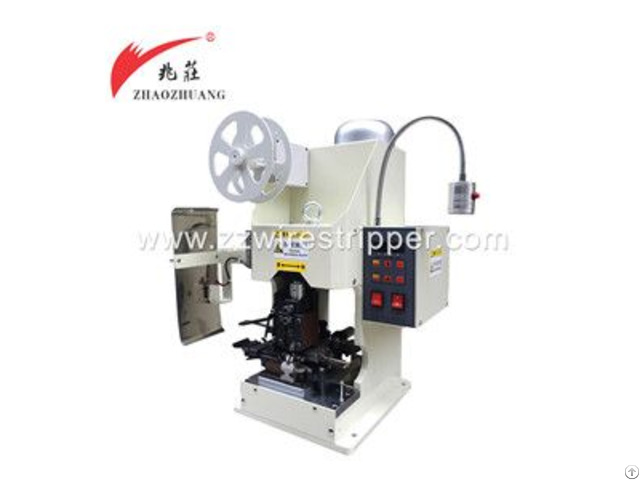

Bd 1500 Sheathed Wire Stripping And Transverse Terminal Crimping Machine - China

Characteristic

1 - wire stripping and crimping terminal are completed at one time, waste skin is blown away by inhalation to ensure that the pressing depth is 100% the same.

2 - It adopts mechanical cam control, precision reducer and motor as power source.

All transmission parts have been hardened, which greatly increases the strength and wear resistance of the parts.

Actions are accurate and easy to operate.

Stripping length, stripping depth, mechanical adjustment, simple debugging, more accurate.

Silent model.

No clutch, frequency converter to control the machine operation, working noise is low.

3 - Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon, fibre, etc.

Model: BD-1500

Power Supply: AC220V 50/ 60HZ

Size: L500*W340* H620mm

Weight: 75KG

Power: 550W

Productivity: 4500pcs/h

Pressure capacity: 1.5T

Air Source: 0.3~0.6mpa

Applicable wire Diameter: AWG30#-AWG18#(ac cording to wire)

Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon, fibre, etc.

Stripping length: 0.5mm-10.0mm

Tangent error: 0.05mm-0.1mm

Position error: 0.05mm-0.1mm
