Bakelite Injection Molding Machine Dk 400 - China

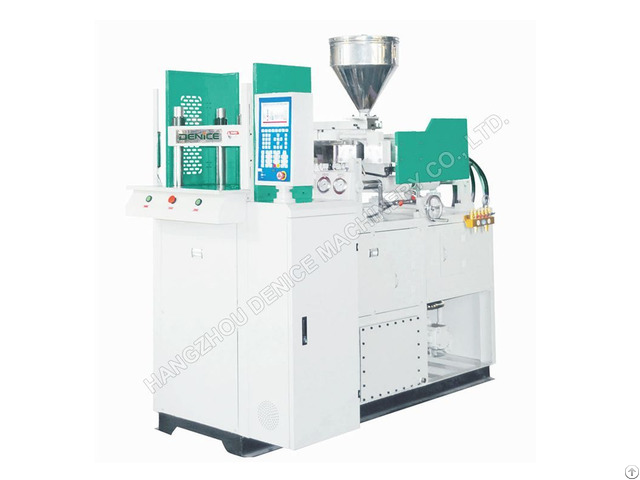

bakelite injection molding machine DK-400

· DK Series

· Vertical type four column clamping, horizontal injection, convenient to put and take out the items.

·Strong mechanical structure, high pressure, high speed, fit for large inserts plastic product molding.

· Humanization design of the height of the work plate and slide table, rotary table, let the mold install and unload more conveniently, increase production efficiency effectively.

Specification of bakelite injection molding machine

Model Unit DK-900

( Injection Unit ) Screw diameter mm Ф36 Ф40 Ф45 Maximum injection pressure Kg/cm2 2177 1763 1393 Theoretical shot volume cm3 163 201 254 Maximum shot weight g/Oz 145(5.1) 179(6.3) 227(8.0) Injection rate cm3/sec 84 103 131

(Clamping Unit) Clamping force ton 90 tie bar distance mm 410× 530 Minimum mold thickness mm 250(Can be customized according to customer requirements) Opening stroke mm 300 Open daylight mm 550(As required) Nozzle Center Height mm 125±20 Nozzle Center Distance mm 125 Ejector force T 4.0 Ejector stroke mm 75

(Others) Pump motor power Kw 15 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 6.5 Total wattage Kw 21.5 Oiltank capacity L 380 Machine weight (approx.

) T 4.6 Machine dimensions(approx.

) m 2.9×1.4× 2.7

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
