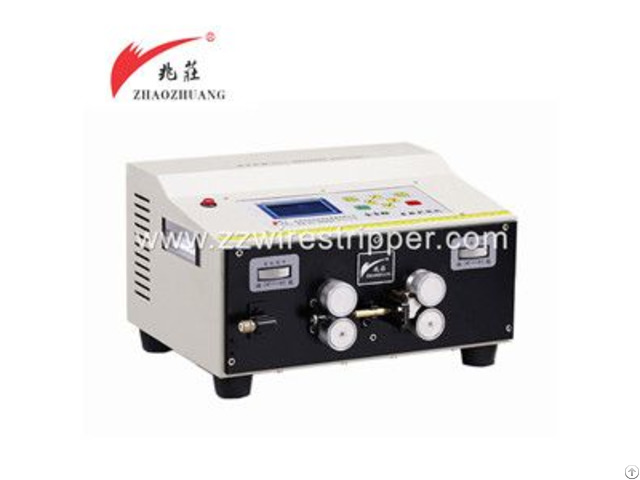

B 02 Automatic Wire Stripping Machine - China
price: contact company for price
Features:
Point at electric wire, silicone wire, teflon wire, glass fibres, shielding wire, copper coaxia wire, cannulas ect, .
Has full-auto cutting, stripping, semi-strippi ng, mid-strippng functions.
The specification and dimension of wires can be changed in minutes.
If the wire is blocked inside, it will stop working and alarm automatically.
It’s free trouble to use it.
Note: blade can be replaced directly
Type: B-02AS, B-02BS, B-02CS
Display mode: LCD
Power: Rated 150W, 180W, 200W
Applied core area: 0.1mm2-1.5mm2, 0.1mm2-2.5mm2, 0.1mm2-4.0mm2
Cutting length: 5mm-40mm-10m
Stripping length: Top: 0-25mm, end: 0-15mm
Stripping pattern: Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts.
Hourly output: 8000-3000 pieces
Speed adjustment: 1-9 grade
Drive method: The two wheels is driving at one time Type: B-02DS
Size: L415mmxW330mmxH27 8mm
Weight: 31KG
Power supply: AC220V/50HZ
Power: RATING 280W
Cutting length: 1mm-50mm-10m
Stripping tolerance: (0.2+0.0002L)mm ※L=LENGTH
Stripping length: (HEAD) 0-25mm (END) 0-15mm
Applied core area: 0.1mm2-6mm2
Wire material: PVC TEFION GLASS WIRE
Output: 8000-3000 pcs/h
Note: The stretcher is selective
Company Contact:
- Phone: +86-0577-88935088
- Address: 2nd Floor, Building 1, No. 128, Juguangyuan Middle Road, Ouhai District, Wenzhou, Zhejiang, China, wenzhou , zhejiang , China
- Email:
Published date: September 22, 2019
- Business Description: Wenzhou Zhaozhuang Automation Equipment Co., Ltd. specializes in the production of enameled wire stripping-free piercing terminal, motor copper-clad aluminum, copper, aluminum enameled wire end and power lead-out welding new scheme, using the paint-free piercing terminal crimping process, Five processes, such as lacquering, winding, dip flux, immersion tin, trimming head, etc., can be energized with one pressure, saving money and labor, making the environmental protection of production process and production products reach the international advanced level and improving Production efficiency.
The workers' stripping machine, tin furnace and tin dust equipment are all in the province.
As the country becomes more and more strict with environmental protection, this process directly subverts the soldering process.
The products are used in motors and motors, air conditioner motors, exhaust motors, capacitor motors.
, range hood motor, DC brushless motor, small AC and DC motor, water pump, air compressor, washing machine, generator, transformer, power tools, etc.
Our Products:
- enameled wire peel free paint copper aluminum enamel wires pierced terminal
- factory direct sales enameled wire scraping machine paint stripper paints machines
- cutting machine manufacturer for bellows cuttings casing aluminum film
- semi full middle stripping automatic computer strippings machine twisting machines
- plc program control tightening machine winding wire tie machines
