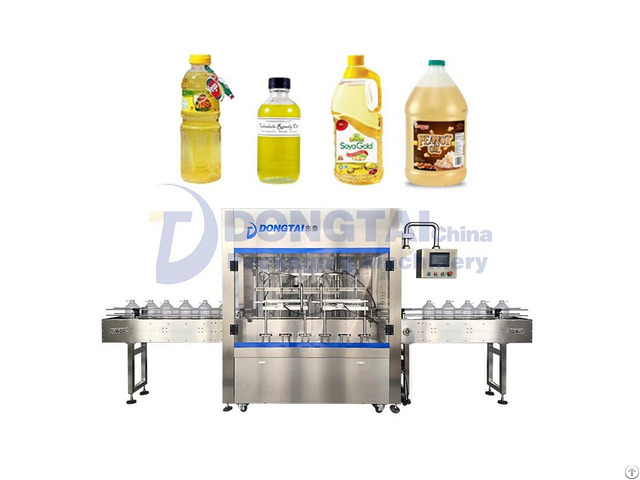

Automatic Weighing Edible Oil Filling Machine - China

Automatic weighing edible oil filling machine Automatic Liquid Filling Machine

Automatic weighing edible oil filling machine is suitable for filling edible oils.

The filling range is from 0.5 liters to 20 liters.

The equipment is linear filling.

Including filling machine, sealing machine, labeling machine to form edible oil filling line.

Equipment appearance 304 stainless steel.

High precision and high efficiency.

It is an ideal equipment for oil filling.

Characteristic:

Automatic weighing edible oil filling machine is suitable for liquid weighting and filling from 0.5 liters to 20 liters.

It is an ideal packaging machine for food, medicine, cosmetics and fine chemical industry, especially used for quantitative filling for water, edible oil and lubricating oil.

This machine adopts programmable controller (PLC), high-speed industrial control configuration software for real-time monitoring control, easy to use and adjust.

It also can automatically complete a series of operations such as counting into the bottle, filling by weight, conveying out of the bottle.

The whole machine is made according to GMP standard.

Connection of each pipe is made by quick assembly, which is convenient for disassembly and cleaning.

The parts which contact with materials and exposed parts are made of high-quality stainless steel.

Complete machine safety, beauty and environmental protection.

Single Head Liquid Filling Machine-Product parameters:

Filling head 6

Filling volume 5-30kg

Capacity 500-1600 barrels /H (5KG);400-560 barrels /H (30KG)

Filling auuracy ±0.1%

Voltage 220V, 50Hz

Power 3KW

Air source 1 - 0.55-0.65MPa

Size 2200mm*1350mm*1820mm

Bottle type Customized

Diameter of bung hole Customized

Main Technical Parameters:

Advantages of the Liquid Filling Machine:

1 - Equipment appearance upgraded

Use tempered glass forwards and backwards; simple appearance, more sense of technology

2 - Equipment Structure Upgraded

(1) Single head, single pump, single structure, centrifugal pump feeding structure with high precision, fast speed (fast feeding), and multi-stage speed filling.

Increase 20% filling speed on the premise of ensuring the filling accuracy, increase the filling speed by 20%.

The buffer tank is installed in the equipment to avoid the large filling error caused by uneven pipeline pressure.

(2) The chain conveyor is suitable for various bottle filling.

The transmission chain adopts teflon roller, less friction and more stability, which can extends the service life of the equipment.

Add clamping device for bottle mouth: more convenient for small container filling, and the positioning of filling head and bottle mouth is more accurate;

Adopts O-type baffle to shield the disadvantages of tension wheel (fish-eye is used to adjust the tightness of sprocket wheel).

The conveyance adopts teflon roller type, the container conveyance is more stable, can turn forward and backward conveyance;

(3) Using listing motor to adjust the height of the filling head .

Adjust the height of the touch screen with one button.

The lifting structure and the motor are connected directly through the coupling with 90 degrees, which reduces friction, reduces power and saves electricity.

(4) Filling head adopts Angle seat valve type, filling inner plug is made of teflon sealing ring to prevent corrosion of special materials ;

Submersible filling method, anti-foaming, suitable for the filling of foaming liquid.

(5) Adopt a variety of weighing modules and weighing sensor measurement method, the error is small as 0.3%

3 - System Upgraded

(1)The filling head is opened before the power source, so that the impact force is small and the splash can be avoided;

(2)Automatic detect barrel weight, if the tare weight of the barrel is higher or lower than the parameters built in, it will be regarded as no barrel.

No filling without barrels and automatic identification stop and start .

If the number of barrels is not enough or there are no barrels in the middle, the machine will automatically identify, not filling on the position without barrels.

(3) The system has a memory function, the filling part can be turned on again after pause to continue the previous work, continuous counting;

(4) There is no barrels feeding time except the first group.

The capacity is 1350 barrels per hour, filling time of each group is 16 seconds.

(Filling machine with 6 filling heads, frequency changer at 25 Hz)

(5) The filling weight can be constantly monitored on the touch screen;

The whole filling process can be tracked and recorded.
