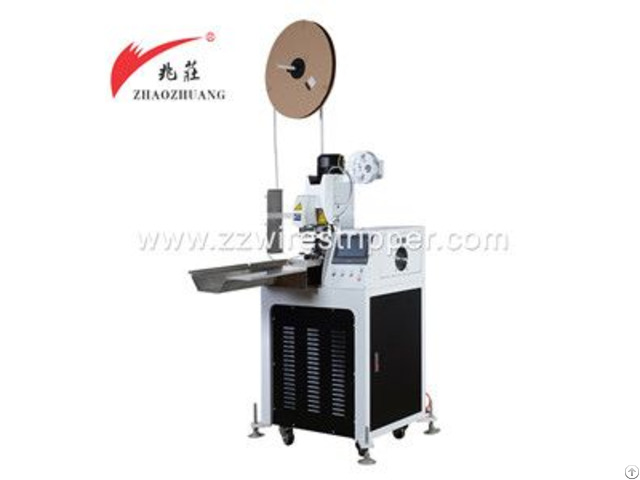

Automatic Single Ends Wire Cutting Stripping And Terminal Crimping Machine - China

Product characteristics:

1 - At the same time, the two lines are trimmed, peeled, tapped and twisted by computer touch panel debugging.

2 - AWG18-28 Applicable Wire#

3 - The terminal machine adopts frequency conversion motor, super silence and power saving.

4 - The shortest tangent of 7000pcs/H

Product Specification:

Function: Electric wire cut-off, one end playing terminal, one end twisting, half stripping, full stripping, two lines completed at the same time.

Capability 7000pcs/H hour minimum tangent time

Adaptive Wire AWG 18- - 28#

Tangent length 30mm-999999mm

Cut-off length accuracy + 0.1MM (design 0.005 total length)

Peeling length: 1 side 10MM; 2 sides 1.5MM-10MM

Compression capacity 19600N (2T)

Control Mode Mitsubishi PLC Electronic Control

Detection device detects abnormalities such as low pressure, shutdown, etc.

Power Supply AC220/200V

Compressed air 0.5Mpa (5kgf/cm) about 200NL/Min

Mechanical dimensions 80W*80D*173H(MM)

Weight: about 90KG
