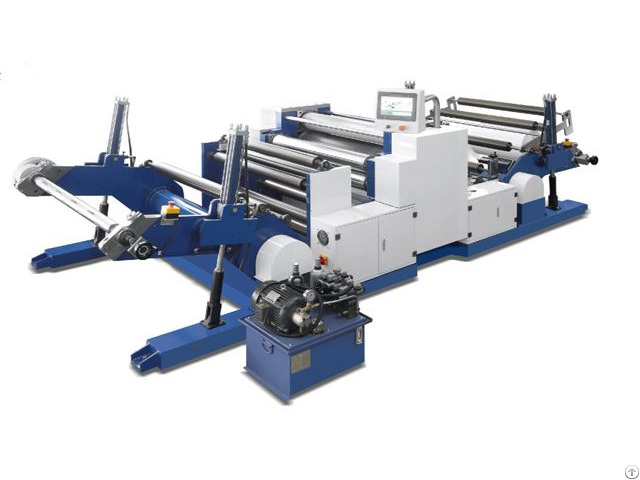

Automatic Roll Type Embossing Machines Model Yw Az - China

Automatic Roll Embossing Machine model YW-AZ is automatic equipment with mechanical, electrical and hydraulic system.

It is suitable for embossing all kinds of paper and plastic film rolls into exquisite design.

It adopts automatic hydraulic lifting system, automatic heating and cooling system, frequency converter to control speed, automatic tension control system and automatic hydraulic system etc.

Main configuration:

PLC control, HMI

Two heating rollers

The front and the back air shaft with automatic hydraulic lift

Pneumatic roller Frequency converter control

Rectification system

Big hydraulic cylinder Designed roller

Wool roller

Reducer

Tension control magnetic motor Main technical parameter:

Model: YW-720A-Z / YW-920A-Z / YW-1150A-Z / YW-1300A-Z

Max.

embossing speed: 5-60m/min

Embossing width: 680mm / 870mm / 1100mm / 1250mm

Material available: Paper, Plastic

Operation pressure: 2-10Mpa

Heating temperature: ≤70℃

Main motor power: 20kw / 32kw / 34kw / 34kw

Air pressure: 0.8Mpa

Dimension(L*W*H): 4800*2600*1450mm / 4800*2800*1450mm / 4800*3000*1450mm / 4800*3200*1450mm

Net weight: 4200kgs / 5200kgs / 6200kgs / 7000kgs
