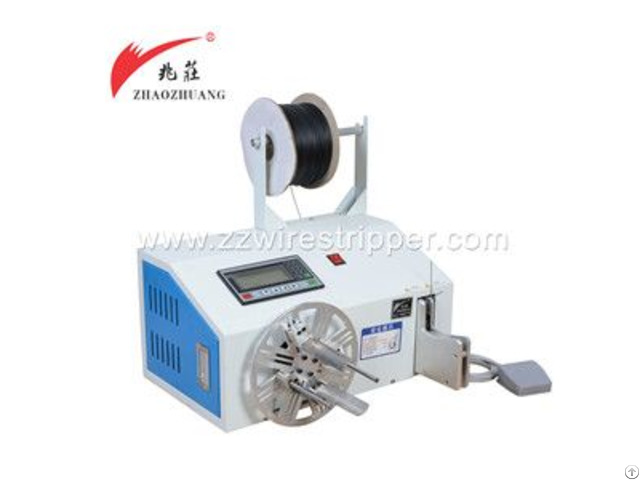

Automatic Electric Wire Tying Winding Cable Bundling Machine - China

The machine is suitable for AC power cord, DC power cord, USB cable, video line, HDMI hd line, etc all kinds of transmission line with plastic bags core twisted into beam, also can be used on other tape to use packet core sealing glue.

This machine can reduce the fatigue strength of employees, improve work efficiency, save the cable tie, etc.

Employees need to put in the wire winding, trample foot switch, automatic winding machine, artificial and then into a binding wire wound around a good line, the machine can automatic cable tie.

Coil number for this machine can be set, winding speed can be adjust, set binding wire length, number of turns, counting can be output.

The machine adopts PLC program control, text display to set parameters, the operation is simple and convenient.

Feature:

1 - PLC program control English operation screen.

It is easy to operate and adjust.

2 - It is convenient to shape the wires and save time, increase the production.

3 - It can pay off wires in a mess.

Name: Automatic Electric Wire Tying Winding Cable Bundling Machine

Support customized: Yes

Weight: 40 kg

Size: 400X380X580mm

Power supply: 220V 50HZ/60HZ

Winding speed: 2-8Can be setted and adjusted

Binding tie length: 65-125mm

120-190mm

200-350mm

winding diameter specifications: φ3-28mm

φ15-40mm

φ40-90mm

Protective Device: Fuse, Alarm downtime

Cable ties: Plastic iron wire
