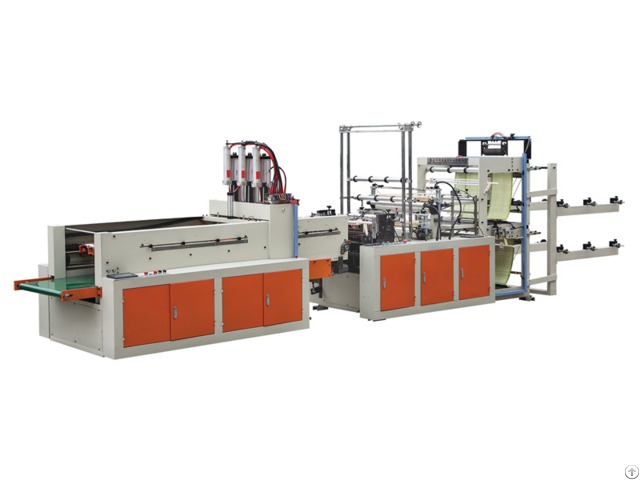

Automatic Double Layer Six Line T Shirt Bag Making Machine - China

Double-layer, Six-line, Bottom Sealing Bag-making Machine has such functions as photoelectric automatic tracking, microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value, and high compensation accuracy.

With characteristics such as neat bags, little error, and high automation of the whole machine, it is an ideal equipment for producing blank bags, color bags, flat bags, vest bags, etc., and other various plastic soft packaging bags.

Performance and Features

Fuselage structural design is streamlined.

No material, blocking bags automatically shut down.

Microcomputer control, stepper motor prop material (optional servo motor control system).

The temperature error is small, bag length can be adjusted freely.

Photoelectric tracking, stopping automatically when the label is lost.

Feeding, back cover, cutting, notching, conveying all in one time.

High degree of automation, good economic returns.

Use:

This machine is suitable for white bags, color bags, flat bags, vest bags, etc.

Main Technical Parameters

Model FR-DFR-800M FR-DFR-900M FR-DFR-1000M FR-DFR-1100M

Max.

Width 200mm*6 240mm*6 280mm*6 310mm*6

Max.

length 600mm 600mm 600mm 600mm

Photocell 1 1 1 1

Cutting Thickness 0.009-0.025mm 0.009-0.025mm 0.009-0.025mm 0.009-0.025mm

Bag Output 10-120 Piece/minute*2 10-120 Piece/minute*2 10-120 Piece/minute*2 10-120 Piece/minute*2

Main Power 1.5kw 1.5kw 1.5kw 1.5kw

Feeding Motor 1.5kw 1.5kw 1.5kw 1.5kw

Power supply 50HZ220V+10%-15% 50HZ220V+10%-15% 50HZ220V+10%-15% 50HZ220V+10%-15%

Weight 1200kg 1200kg 1300kg 1300kg

Overall Dimensions 7000×1400×1800(mm) 7000×1500×1800(mm) 7000×1600×1800(mm) 7000×1700×1800(mm) Our company is dedicated to providing high-quality bag making machines, with a particular focus on plastic bag production machines.

We understand the diverse needs of the market and provide advanced solutions to ensure that the various needs of our customers are met efficiently and stably.
