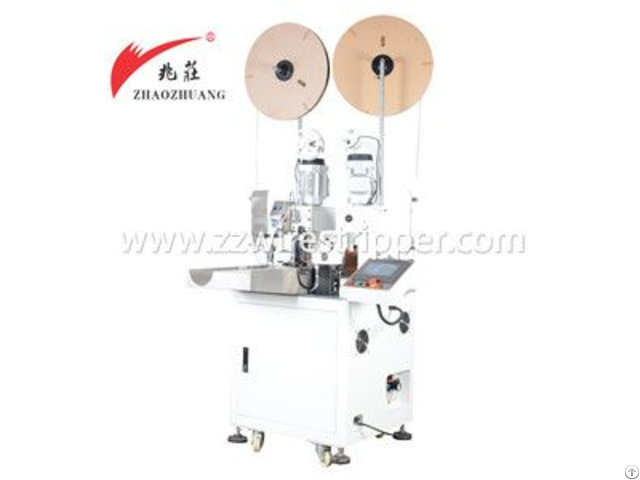

Automatic Double Ends Wire Cutting Stripping And Terminal Crimping Machine - China

FEATURE:

1 - This is a high precision machine

.

Adopt motion control high-speed PLC, powerful, stable performance

.

7-inch TFT HMI screen, easy to operate

.

Using precision stepper motor and drive, stable performance;

.

SMC pneumatic components, stable, efficient and durable;

.

Japan THK rails, stable and durable;

.

Japan's Omron detection assembly, precision, and stability.

2 - Multifunctional equipment:

.

Can be set through the touch screen corresponding to adjust the parameters as follows: full strip both ends, both ends of the semi-stripping, crimping both ends;

.

Set the appropriate parameters through the touch screen, Be adjusted: wire length, strip length, incision depth;

.

Modify corresponding parameters can be set via the touch screen: parameters include wire length, strip length;

3 - High quality machines

.

Wire feeding device adopts stepping drive control, wire length, strip length without deviation;

.

Wire feeding device uses synchronous stepper motor to feed lines, stable, accurate, wire no pressure mark;

.

Detecting device can detect there is no wire, tie wire detection, bad Crimping testing, air pressure detection;

.

Crimping device uses a universal mute terminal machines, low noise, stable performance, can carry the cross, straight to send cards.

Productivity: 4000pcs/h ( within 200mm length)

Cutting length: 50mm-9999mm(the shortest can be 25mm)

Peeling length: 0.1mm-10mm

Pressing ability: 1500KG

Air pressure: 0.4-0.6Mpa

Processed wire range: AWG#30-AWG#18/AWG#2 0-AWG#14

Dimension: 1000-800-145 0

Weight: 350KG
