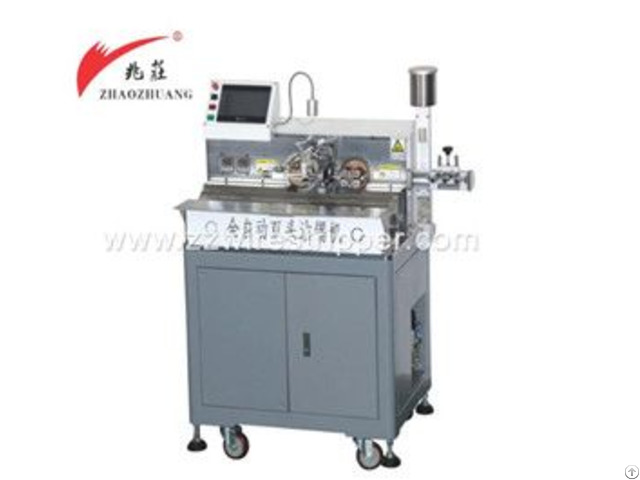

Automatic Double Ends Tin Dipping Machine Once Output Eight Wires - China

Product characteristics:

1 - Exquisite, compact design, excellent conception, small area;

2 - The Chinese operation menu of computer touch screen is easy to learn and use.

3 - Rapid replacement process and materials;

4 - Imported Sanyo motor drive with high precision and rapidity;

5 - Easy maintenance;

6 - High cost performance.

Quality and Service:

Machine maintenance for one year, the company provides training, installation, commissioning, maintenance, maintenance, life-long after-sales service.

Product Specification:

Power Supply: AC 220V/50/60HZ Single-phase

Function: Wire cutting, single-end peeling, double-end peeling, single-end tin, double-end tin parallel wire, peeling tin plating

Productivity: The production capacity of 5000 units per hour (less than 10mm in length) varies according to the type and size of the wires.

Machinable Wire Range: (AWG#18—AWG#32)

Cut length: (6mm-8000mm)

Stripping Length: Stripping Length

Air pressure: 6KGF (clean and dry air is required)

Body size: 600W×900L×1100H(mm )

Body weight: About 300kg

Product characteristics:

1 - Factory direct sales, good quality, real price, bring you real benefits.

2 - Construct a dignified atmosphere, high-precision parts imported from the original, stable performance.

3 - Simple operation, wire length, cutting speed and tin dipping time are all operated by touch screen.

4 - The output value of production capacity reaches 25, 000 finished products per hour.

5 - Line length is controlled by original Japanese Sanyo motor with high precision.

6 - Lead-free tin furnace, meeting high environmental standards; automatic scraping device to make the cut wire bright Wuxi slag residue; can set scraping time, so that tin loss to the lowest; 90 degree angle tin, tin mouth even in place.

7 - Automatic welding aid device

8 - To order this product, we deliver it to your door and train our staff in the whole process.

The product is sold with a one-year warranty, lifelong maintenance and after-sale all day.

9 - Owning this equipment (difficult recruitment, high salary, difficult management) is no longer a problem for you.

Without all complicated procedures, an ordinary employee can easily manage several machines.

Company Contact:

• Posted By: Wenzhou Zhaozhuang Automation Equipment Co., Ltd.

• Phone: +86-0577-88935088

• Address: 2nd Floor, Building 1, No. 128, Juguangyuan Middle Road, Ouhai District, Wenzhou, Zhejiang, China, wenzhou , zhejiang , China

• Email:

• Business Description: Wenzhou Zhaozhuang Automation Equipment Co., Ltd. specializes in the production of enameled wire stripping-free piercing terminal, motor copper-clad aluminum, copper, aluminum enameled wire end and power lead-out welding new scheme, using the paint-free piercing terminal crimping process, Five processes, such as lacquering, winding, dip flux, immersion tin, trimming head, etc., can be energized with one pressure, saving money and labor, making the environmental protection of production process and production products reach the international advanced level and improving Production efficiency.

  The workers' stripping machine, tin furnace and tin dust equipment are all in the province.

  As the country becomes more and more strict with environmental protection, this process directly subverts the soldering process.

  The products are used in motors and motors, air conditioner motors, exhaust motors, capacitor motors.

  , range hood motor, DC brushless motor, small AC and DC motor, water pump, air compressor, washing machine, generator, transformer, power tools, etc.
