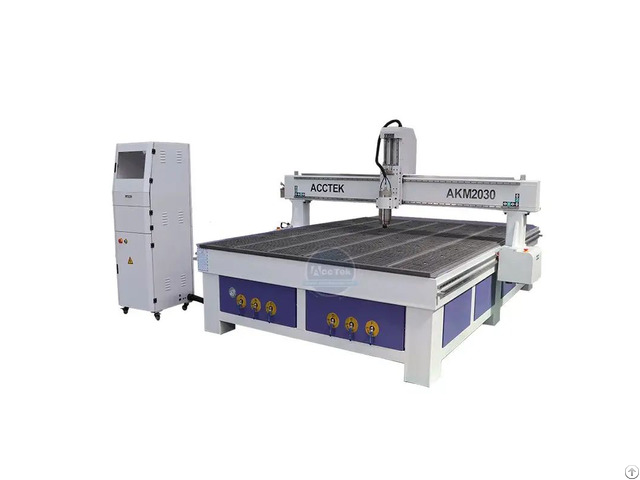

Automatic 3d Cnc Woodworking Machine - China

Features of wood cnc router machine: 1 - Imported high-precision ball screw has smooth movement, which can ensure high precision of machine tools.

2 - We adopt well-known water-cooling brushless spindle in our Cnc router, so the machine is of low noise, high cutting ability, which can ensure long working hours.

3 - With high-performance Leadshine stepper motor and drivers, the machine can work in high speed and accuracy.

4 - Designer perfectly selects the best machine accessories, minimizing the failure rate.

5 - Breakpoint memory, continuing carving after power outage, forecasting processing time and other functions.

6 - Compatible with Type3/ Artcam/ Castmate, and other CAD/CAM design software.

7 - mach 3 control system, easy operated 8 - CNC router machines’ body is strong, rigid and durable.

9 - Adopted red safety sensors, this device could protector human healthy when the machine work.

Working Area

2000*3000*200mm

Traveling Positioning Accuracy

±0.03/300mm

Repositioning Accuracy

±0.03mm

Table

T-slot Table

X, Y axis

helical rack 1.25M, Hiwin 20# Rail Linear Bearing

Z axis

Hiwin Rail 20# Linear Bearing & Taiwan TBI Ball Screw

Max.

Power Consumption

(Without Spindle) 2.5kw~3Kw

Max.

Rapid Travel Rate

33000mm/min

Max.

Working Speed

25000mm/min

Spindle Power

Air cooling spindle

Spindle Speed

0-18000RPM

Drive Motors

Leadshine easy servo motor

Working Voltage

AC380V/50/60Hz, 3PH (Option: 220V)

Command Language

G Code

Operating System

Mach3 control System

Computer Interface

USB

Flash Memory

128M(U Disk)

X, Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9/Artca m Software

Running Environment Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%
