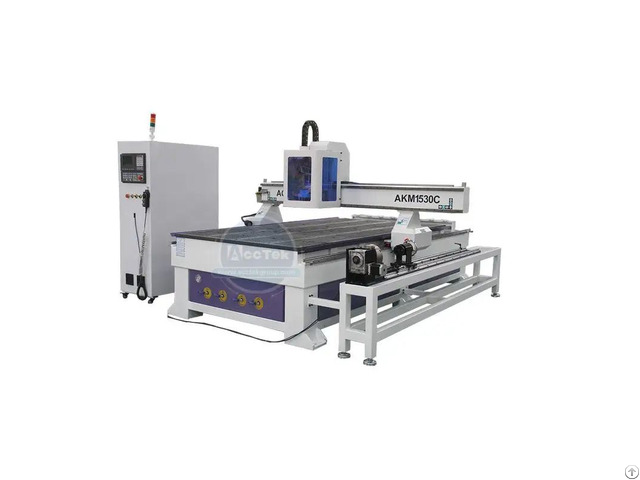

Atc 9kw Wood Cnc Router Machine 1530 With Back 8 Tools Linear - China

Features:

1 - The working size is 1500*3000*250mm, for the Z axis can be increased.

2.9kw Italy HSD ATC spindle with 11kw Taiwan DELTA inverter(top brand in the world, global warranty service).

3 - Japan YASKAWA Servo system (famous brand in the servo system ).

4 - Syntec control system (famous brand, mulifunctional, and longer life time).

5 - Rotary device is available for processing cylinder object, but at a very economical price.

6 - With linear tool changer, constructed with world-class components, consistent high performance.

7 - Featuring Italian high frequency air-cooling electronic spindle and world-class servo motor and driving system.

8 - Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in place.

9 - Taiwan Original TBI ball screw for Z travel.

10 - Taiwan HIWIN Linear guide.

Description

Parameter

5X, Y, Z Working Area

1500*3000x250mm

X, Y, Z Traveling Positioning Accuracy

±0.03/300mm

Table Surface

Vacuum&T-slot Table

Frame

Welded Structure, heavy duty T-structure

X, Y Structure

Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings

Z Structure

Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings

Max.

Power Consumption

5.0KW

Max.

Rapid Travel Rate

45000mm/min

Max.

Working Speed

30000mm/min

Spindle Power

9.0kw ATC air cooling spindle

Spindle Speed

0-24000RPM

Drive Motors

Taiwan DELTA servo motor and driver

Working Voltage

AC380V/50/60Hz, 3PH

Control System

Taiwan SYNTEC control system

X, Y Resolution

<0.01mm

Software Compatibility

Type3 Software, (Option: Artcam Software)

Running Environment Temperature

0 - 45 Centigrade
