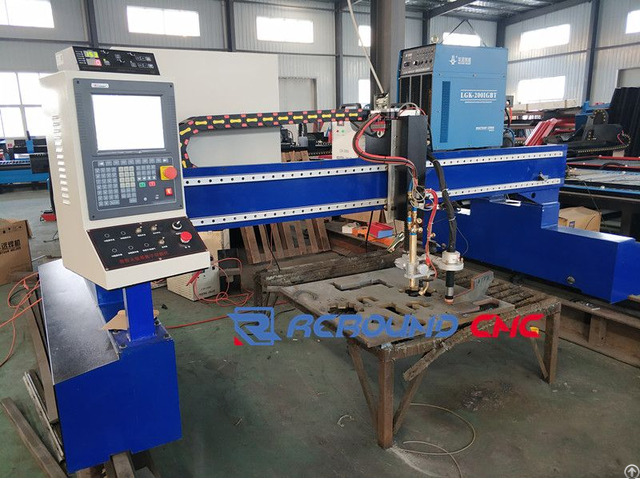

Affordable Lgk Hypertherm Light Gantry Cnc Plasma Cutting Machine - China

This light gantry CNC plasma cutting machine doesn't have working table, so it can withstand heavy cutting of iron sheet.

When we ship this machine, we can dismantle the whole machine, the packing size is only 4 cbm.

So this can save a lot of transportation costs.

It can be equipped with any plasma power supply, such as China Huayuan, American Hypertherm and so on.

Applicable Materials:

Sheet and tube of carbon steel, stainless steel, aluminum, copper and other non-ferrous metal .

Features of light gantry CNC plasma cutting machine:

1 - Two cutting modes optional: plasma plate cutting and tube cutting.

2 - Gantry structure, perfect bearing capability.

The machines’ body is strong, rigid, high precision, reliable and durable.

3 - Adopt well known plasma power USA Hypertherm supply and cutting torch.

4 - Cutting edge is small and smooth, without any drop outs, thickness for metal cutting is up to 30mm.

5 - With Arc voltage Auto Height-adjusting Device, arcing success rate over 99% and can protect cutting torch from damage, increase cutting quality.

6 - Adopts Imported high-precision Hiwin Linear guide rails, smooth movement, to ensure that the machine tools high-precision.

7 - Drive gear and rack, customized from professional manufacturer, is surface processed by cemented quenching, which can prolong machine’s using life.

8 - Step and Servo drive system is available, which with features of function detecting, high running precision, wide speed range and short speed up time.

Parameters of light gantry CNC plasma cutting machine:

Model RB-1530

Working Voltage AC 220V/380V, 50HZ

Working Size 1500mm*3000mm

Max Cutting Speed 20000mm/min

Cutting Thickness(Plasma)(mm) 1-30mm

Power 45A/65A/85A/105A/125A/200 A

Precision ±0.01mm

File output mode USB interface

Command Code G code/*.

MMG/*.

PLT/*.

eng


Packing type Standard plywood case

Table Saw tooth table(Optional Blade table)

Weight 1500KG
