6000w 6000mm 2050mm Fiber Laser Cutting Machine - China
price: 1.00 Dollar US$

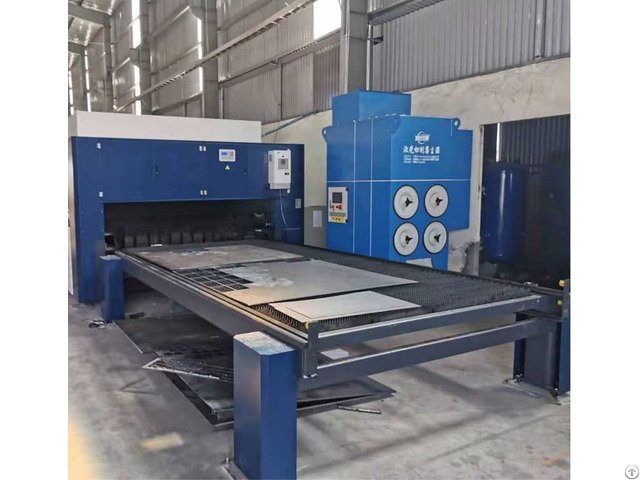

6000W 6000mm*2050mm fiber laser cutting machine
We manufacture 1kw, 2kw, 3kw, 4kw, 6kw 10kw, 12kw fiber laser cutting machine
Complete machine has TWO years warranty.
Highly Efficiency Laser Cutting Machine
3015, 4015, 4020, 6020, 6025, 8020, 8025, 9020 table available.
Open type single table, or double auto exchangeble table, With or without protective cover, customize as your request.
Round/Square tube cutting available.
Wuxi Qiaolian CNC Welding&Cutting Machine Co., Ltd is a branch of Qiaolian Group, professional in CNC machine R&D, production, especially for high precision machine like fiber laser cutting machine, HD plasma cutting machine, Robot welding machineetc.
Our reputation in this field is long-life of machine, more and more old customers come back for new business after used our machine for some years, as they have seen the stability of our machine same as Germany, USA brand.
Machine specification
Type JLMD6025
Effective Stroke X axis(mm) 6050 Y axis(mm) 2350 Z axis(mm) 250
Positional Accuracy X axis(mm) ±0.05 Y axis(mm) ±0.05 Z axis(mm) ±0.01
Repeated Positioning Accuracy X axis(mm) ±0.03 Y axis(mm) ±0.03 Z axis(mm) ±0.005
Repid Postitioning Speed X axis(mm) 120 Y axis(mm) 120 Z axis(mm) 48
Work table bearing(kg) 3000kg(adjustable)
Worktable exchange time 21s(adjustable)
The laser power(W) 500/700/1000/1500/2000/30 00/4000
Machine weight(Ton) 15.5
Size L*W*H(mm) 14950×3850×2100
Stable Laser Cutting Machine Supplier: Wuxi Qiaolian CNC Welding & Cutting Machine Co., LTD
Machine configuration and operation cost
enclosed table
Cypcut controller
BCS100 auto height controller
Yaskawa servo+Shimpo gearbox
APEX gear rack+INA rail
Raytool auto focus head
SMC+Parker Valves+Schneider relay
Hans water chiller Machine table Features
1 - Gantry dual drive, adopting advanced gear rack transmission structure.
Equipped with grinding gear and rack, and through the precision collimator one time metering assembly.
The machine will secure long-term high cutting speed, high precision transmission.
2 - The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.
3 - Beam structure adopts the modular design, with aviation aluminum control processing, effectively controlled the weight of beam.
This structure design greatly improves the high speed response, and precision of cutting.
Company Contact:
- Phone: 510-83301800
- Address: No.6-7 ZoneB, Xinsheng industril area, Luoshe town, Huishan District, Wuxi , Jiangsu , China
- Email:
Published date: June 8, 2020
- Business Description: Wuxi Qiaolian CNC Welding&Cutting Machine Co.,Ltd is a branch of Qiaolian Group, professional in CNC machine R&D, production, especially for high precision machine like fiber laser cutting machine, HD plasma cutting machine, Robot welding machine.
etc.
Our reputation in this field is long-life of machine, more and more old customers come back for new business after used our machine for some years, as they have seen the stability of our machine same as Germany, USA brand.
