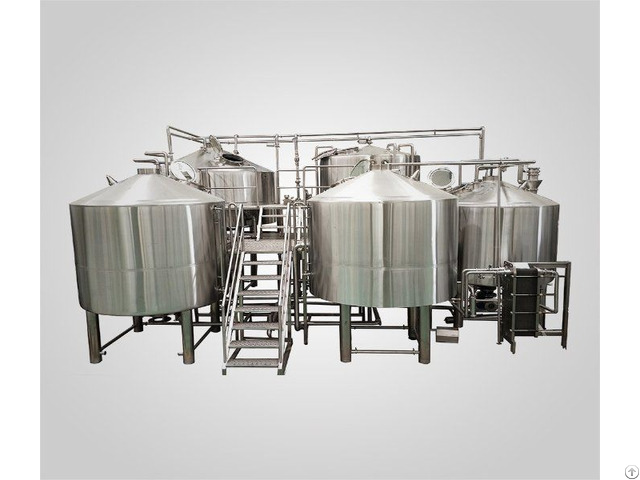

30bbl Steam Mash Tun/ Mashing Equipment - China

30BBL Steam Mash Tun is a vessel used in the mashing process to convert the starches in crushed grains into sugars for fermentation.

TBE Steam Mash Tuns are insulated to maintain a constant temperature.

The Steam Mash Tun can be single-function or can also have a false bottom and spigot so that the sparging process can be done in the same vessel.

Steam jacket design will allow The TBE systems are designed to do both decoction mashing and infusion mashing.

The mashing tun/kettle is made out of stainless steel or copper.

Function: Grain mashing

Tank Capacity: 30BBL (+25% Headspace minimum)

Dimention: 1960mmx3400mm

Interior Shell: SUS304 full welded; TH=3mm

Exterior Shell: SUS304 full welded; TH=2mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.4~0.6 渭m without dead corner

Insulation: Rock wool; TH=80mm

Heating: Steam

Steam Jacket: Dimple plate on bottom and side

Dished top and sloped bottom

Stainless steel top mounted manway

360掳 coverage CIP spraying ball

Agitator withVFD controled motor and turbine reducer

Malt hydrator mounted on top

4pcs completely SUS304 heavy duty legs with leveling pad

Thermowell for high accuracy temperature sensor
