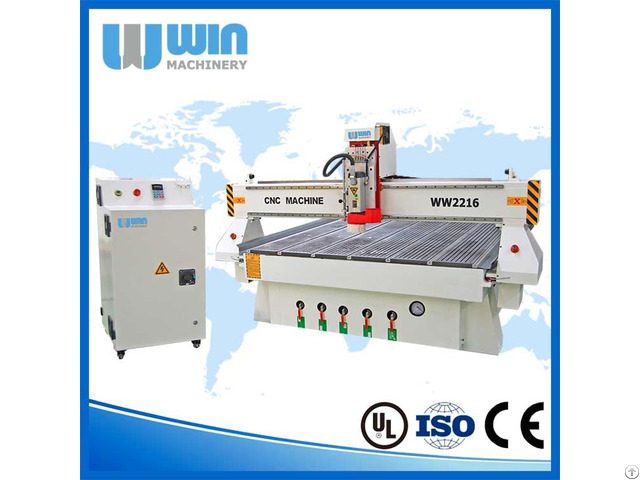

Ww2216 Woodworking Cnc Router - China

Product Description

Entry-level three axis made from fully stress-relived structured steel for cutting and carving flat board.

The Routers features - Precision ball scree drives - Rack and pinion transmission - Multi-zone vacuum plenum - World renown HIWIN bearings - Windows® based easy-to-learn and use G-Code Interface (multiple languages).

Application

3D Carving, Acrylic Fabrication, Aluminum Fabrication, Architectural Millwork, Cabinetry, Exhibits and Fixtures, Signmaking, Arts and Crafts, Furniture, Boat Building, Musical Instruments and More.

Material

Acrylic, ACM, Copper, Brass, Aluminum, PVC, MDF, Melamine plastic, Foam, Melamine, Phenoic, Plywood, HDPE, Solid Surface, Solid Wood, etc.

Performance Parameter

1 X, Y, Z Working Area 2200x1600x200mm

2 Table Size 2350×2140mm

3 X, Y, Z Traveling Positioning Accuracy ±0.03/300mm

4 X, Y, Z Repositioning Accuracy ±0.03mm

5 Table Surface Vacuum and T-slot Combined (Option: T-slot Table)

6 Frame Welded Structure

7 X, Y Structure Rack and Pinion Drive, Hiwin Rail Linear Bearings

8 Z Structure Hiwin Rail Linear Bearings and Ball Screw

9 Max.

Power Consumption (Without Spindle) 3.2Kw

10 Max.

Rapid Travel Rate 33000mm/min

11 Max.

Working Speed 25000mm/min

12 Spindle Power 3.0/4.5/6/7KW

13 Spindle Speed 0-18000RPM

14 Drive Motors Stepper System

15 Working Voltage AC380V/50/60Hz, 3PH (Option: 220V))

16 Command Language G Code

17 Operating System DSP System (Options: Ncstudio/Mach3 PC Software)

18 Computer Interface USB

19 Flash Memory 128M(U Disk)

20 Collet ER25

21 X, Y Resolution <0.01mm

22 Software Compatibility Type3/UcancameV9 Software (Option: Artcam software)

23 Running Environment Temperature 0 - 45 Centigrade

24 Relative Humidity 30% - 75%

25 Packing Size 2200X2500X2100mm

26 N.W. 950KG

27 G.W. 1080KG

Guarantee & After Sales Service

1 - The CNC Wood Carving Machine is guaranteed for 12 months.

2 - Technical support by phone, e-mail or MSN around the clock.

3 - Friendly English version manual and operation video CD disk.
