Veneer Hot Press Dryer Machine - China

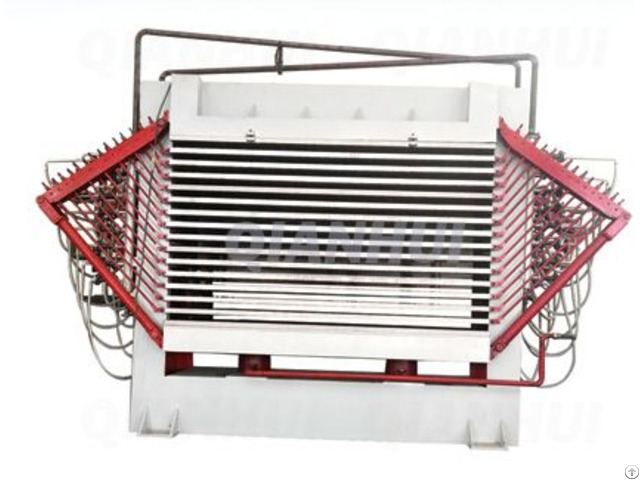

15 Layers Veneer Hot Press Dryer Machine Plywood Veneer Drying Machine

Technical Specification:

Model No BG137x270x15L

Layer Quantity 15 Layers

Hot Platen Quantity 16 pcs

Hot Platen Size 1370x2700x42 mm, Solid Platen

Distance Between Layers 60mm

Cylinder Size φ180x900mm

Cylinder Quantity 2 Units

Nominal Pressure 40 KN

Hydraulic Rated Pressure 8 Mpa

Closing System Synchronizing Close

Closing Time 15 s

Heating Medium Thermal Oil or Steam Water

Boiler Capacity Required 0.5T Steam Boiler or 300000Kcal Oil Boiler

Temperature Required 160℃

Drying Capacity 35 m³/24 hours

Final Moisture After Dry 6%-10%

Motor Power 13kw

Frame Structure Bolting Knockdown Type

Operating Workers Four Workers Can Operate Two Units Dryer

Dimension 3290x1370x2875 mm

Weight 25000 kg

Key Features:

1 - This is hot press breath type veneer dryer, the hot platens are solid platens like hot press machines, and the surface of the platens are milled with grooves, so the water will come out soon after press .

This structure makes it very efficient and productive, its drying capacity is 35m³/ day 24 hours .

We have many customers in Indonesia and India using this type dryer .

2 - Its motor power only 13kw, average electricity consumption only 5kw/ hour, so the drying cost is very low .

3 - It can be heated by steam water or oil, so you can use steam boiler or oil boiler, and you can burn waste wood to heat the boilers.

Cost is very low.

4 - As the veneer is pressed by solid hot platens when working, so veneer will because very flat after dry, and the veneer spoil rate is very low.

5 - It is equipped with the pinion and rack balancing system to keep the machines runs smoothly

6 - Synchronize close system used, to guarantee that all the layers close at the same time

Qianhui is specialized in plywood veneer drying equipment, Our wood veneer dryer machine are very popular, if you are interested in our plywood dryer, please contact us as soon as possible.
