  • Three Workstages Wood Cnc Router For Door Cc Ms1325as 3 - China

    price: contact company for price

    Three workstages wood CNC router for door

    CC-MS1325AS-3

    Features:

    Asynchronous multi-head woodworking CNC Machine is customized for changing the

    tools within 2-4 piece.

    It's not only economic, also can realize speedy auto tool change,

    save the time of manual tool change, improve the working speed and precision

    Main Special Configuration:

    1 - For this model Woodworking cnc machine, using three 4.5KW Air-cooling spindle, the middle spindle can have two piece tools mainly for board's side drilling and milling.

    So, it also called multi-function cnc router machine.

    2 - Three spindles can use three different tools for your three different designs' processing at the same time, which is similar with Auto-tool changer CNC Machine Center with three tools.

    3 - Taiwan Syntec Control System, with vernier Handle controller

    4 - Special Vacuum System with: vacuum table with movable suction block, vacuum pump and tubes

    5 - Higher gantry can be up to 300mm; Bigger gantry width can make sure every spindle's effective working area.

    6 - Heavy bistratal Side plates, which can keep large supporting power for the cnc router gantry's moving perfectly.

    7 - This CNC Machine XYZ effective working area is 1300*2500*300mm.

    8 - Independently Electric Control Box, with perfect wiring and free moving pulleys.

    10 - Heavy Hard Steel Lath Body, dealing with Time-treatment, never to be deformed.

    keep the cnc router machine working High stability.

    11 - High-precision and bigger ball screw.

    Original Bigger Taiwan HIWIN Straight Square Guide Rail.

    To make sure the machine's working high-speed and high-efficiency.

    12 - The table is also with locating rods, in order to fix the working piece easily.

    13 - Provide protective barrier for the cnc machinery, in order to keep the safe operation.

    14 - Can work on the big wide board , also long and narrow board at the same time

    15 - Chencan CNC router can promise that our any set machine is the best quality and high-speed Wood carving and cutting CNC Router.

    Technical Parameter

    Description Parameter

    X, Y Working Area 1300*2500mm

    Z Working Area 200mm

    Table Size 1440*3040mm

    Resolution 0.01mm

    Lathe Structure Seamless welded steel structure

    X, Y Structure Rack and pinion transmission,

    Hiwin square guide rail

    Z Structure Germany rolling ball screw,

    Max.

    Idling Speed 35m/min

    Spindle 4.5 KW

    Spindle Rotate Speed 0-24000r/min, variable speed

    Working Voltage AC380V/50Hz

    Working Mode Stepper

    Command G code (HPGL, U00, mmg, plt)

    Operating System DSP with USB interface

    Diameter of cutter φ3.175-φ12.7mm

    Cooling Mode Water-cooling

    Dust-collect Function Yes

    Work-holding By suction or clamp

    Net Weight 1300KG

    Software Type 3, ArtCam, Wentai

    Skype: cnsackol


    Company Contact:


    • Phone: 08618205415632

    • Address: Mingjia WestRoad Qihe Economic Development Zone o, Jinan , China

    • Email: Email

    Published date: October 10, 2013

    • Business Description: Built 1998, Owning many years manufacture and international service

      experience of CNC Machinery.

      All products have obtained the Euro CE and

      ISO 9001: 2008 Quality Certificate.

      Our company mainly manufacture Woodworking CNC Router, Foam and Wood molding CNC Machine, Stone Engraving Machine, Furniture and Door making CNC Machinery, 4 Axis Cylinder and 3D CNC Engraver, Metal Carving Machine, CNC Wood turning lathe, Milling Machine and Machinery parts processing, etc.

    Related listings

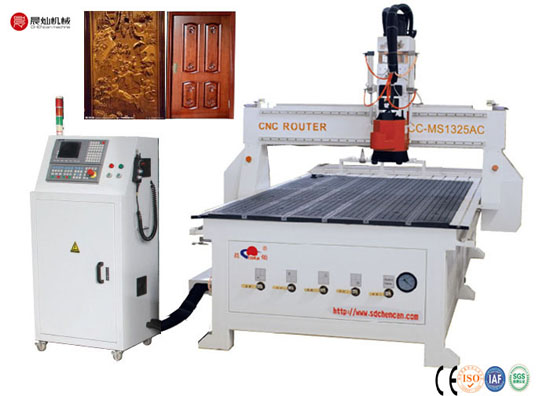

    • Linear Auto Tool Changer Cnc Router Center Cc Ms1325ac
      Linear Auto Tool Changer Cnc Router Center Cc Ms1325ac
      Machinery - Woodworking - Shandong Chencan Machinery Co.,Ltd - China - October 10, 2013 - contact company for price

      Linear auto tool changer CNC router center CC-MS1325AC Feat ures: 1. Linear style automated tool changerwith 6 pieces of tools in total. 2. Adopt Italy-made air-cooled spindle with strong power of 9.0KW, so the machine can keep working for long-time ...

    • 3d Four Axis Rotary Cnc Router Cc M1212bg4
      3d Four Axis Rotary Cnc Router Cc M1212bg4
      Machinery - Woodworking - Shandong Chencan Machinery Co.,Ltd - China - October 10, 2013 - contact company for price

      3D four axis rotary CNC Router CC-M1212BG4 Feat ures: 1. 4 axises machine, with 4 Rotaries , which can work at the same time or independently, and every one's effective working area is 125mm(diameter) by 1000mm(length) 2. Whole machine is welded with...

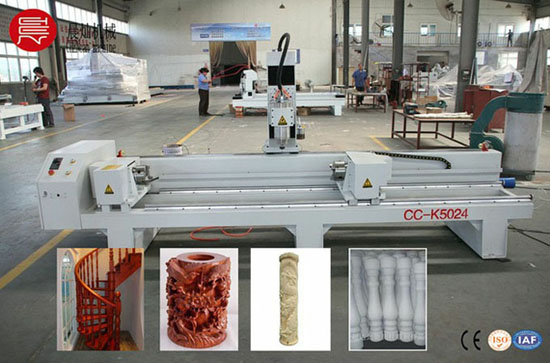

    • Four Axis Rotary Cnc Router For Cylinder Wood Cc K5024
