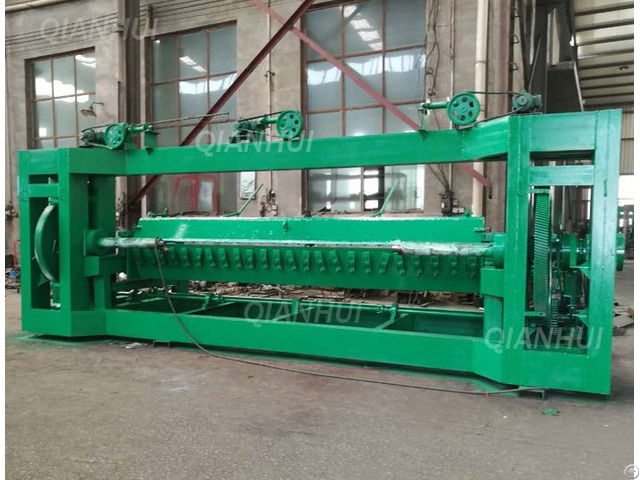

Spindle Veneer Rotary Peeling Lathe - China
price: 10000.00 Dollar US$
Spindle Veneer Rotary Peeling Lathe 3300m Length x φ2200mm For Face Veneer 0.2-2.6mm
pindle Veneer Lathe, Face Veneer Peeling Machine
Technical Specification:
Model No BX3300
Peeling Length 2800-3300mm
Peeling Diameter 180-2200mm
Peeling Thickness 0.15-2.6mm
Spindle Speed 30-80m/min
Spindle Diameter 100-120mm
Main Motor 55kw Variable Speed Motor
Knife Table Motor 3kw
Spindle Motor 3kw x 2sets
Thickness Adjust Motor 4kw x 1 set
Dimension 6000x2300x2700mm
Weight 14000kg
Key Features:
This is 11ft spindle peeling machine for making face veneer, its max peeling length 3300mm, max peeling diameter 2200mm, suitable for peeling keruing, teak, poplar etc.
With swing veneer collector system.
It is heavy duty machine, weight up to 14000 kg
Company Contact:
- Posted By: http://www.worldbid.com
- Phone: 0319-7586599
- Address: Xingwan Industrial Area, Ren County, Xingtai , Hebei Province, China
- Email:
- Website: http://www.qhplywoodmachine.com/
Published date: April 28, 2019
- Business Description: Mr Jia Yunao, General Manager of Hebei Qianhui Machinery Co., Ltd, once worked for State-owned Renxian Machine Tool Factory.
In the year 1999, he rented the workshops from the machine tool factory, and founded Renxian Shuntong Machinery Factory with his partner.
Then he started making veneer machines and plywood machines till now.
In order to expand business and plant scale, they renamed the plant Hebei Jiushun Machinery Manufacturing Co., Ltd in the year 2007 - And in the year 2017, they restructured the plant Hebei Jiushun and Mr Jia Yunao started using the new name Hebei Qianhui Machinery Co., Ltd.
