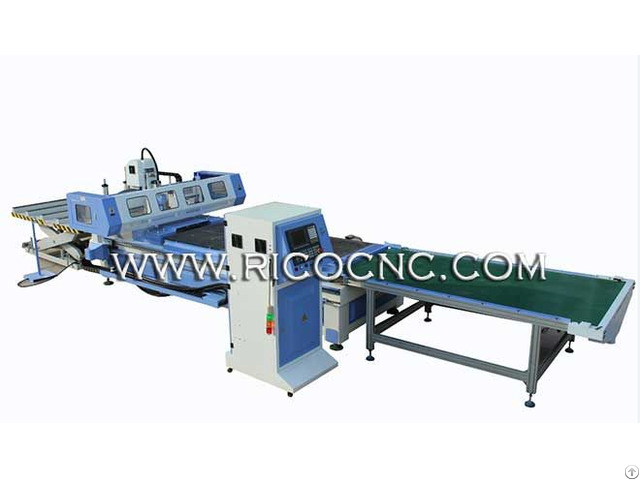

Nested Based CNC Routers 1325 with Auto Load and Unload for Wood Panel Machining

Model: ALC1325V Nested based CNC router panel furniture production line ALC1325V is our newly-developed CNC router with combined function of panels loading and unloading for cabinet making, widely used in home decoration, shop and office furniture.

It is equipped with Italy HSD Spindle and advanced Syntec control system, Japanese Yaskawa servo.

CNC Auto Load/Unload for Panel Machining Features:

1 - Highly automated nesting solution with automatic loading and unloading system.

The complete work cycle of loading, nesting, drilling and unloading is carried out automatically, which results in maximum productivity without down time.

2 - World's first class components--Italian high-frequency electro spindle, Taiwan Syntec control system, Japan Yaskawa servo system, helical rack and pinion drives, Taiwan Hiwin self-lubricating and dust-proof square linear guides, etc.

3 - Truly versatile--nesting, routering engraving all in one.

It is well-suited for panel furniture, office furniture, cabinets production.

CNC Router with Auto Load and Unload Main Configuration:

1 - 6KW Italy HSD air cooling spindle

2 - Taiwan syntec control system

3 - 750W japan YASKAWA Servo motor

4 - Taiwan Hiwin Square guide rails

5 - Automatic loading/unloading table Auto Load and Unload CNC Router 1325 Parameters: Technical ALC1325V Control system Taiwan Syntec Working range 1300*2500*230mm Repositioning resolution ±0.02mm Resolution ±0.0025mm Spindle model Italy HSD 6KW spindle Spindle speed 6000-18000rmp/min Max speed 60m/min Max cutting speed 25m/min Driver Japan YASKAWA 750W Square gide rails Taiwan 30 Square Rails Oil system Automatic Oil System Vacuum pump Water cooled Vacuum pump Tool Holders 1 Spindle Body Structure Standard Type Inverter Fuling 7.5KW Electric Pars Zhengtai/Schineider Weight 2000KG CNC Router with Load Unload System Application:

This nested based auto load & unload system CNC router is good for produce wooden door, cabinet, panel furniture, closet, etc.

It is also suitable for standard or bespoke furnitures making.
