Heavy Duty Spindleless Veneer Peeling Lathe Speed 30 80m Min - China

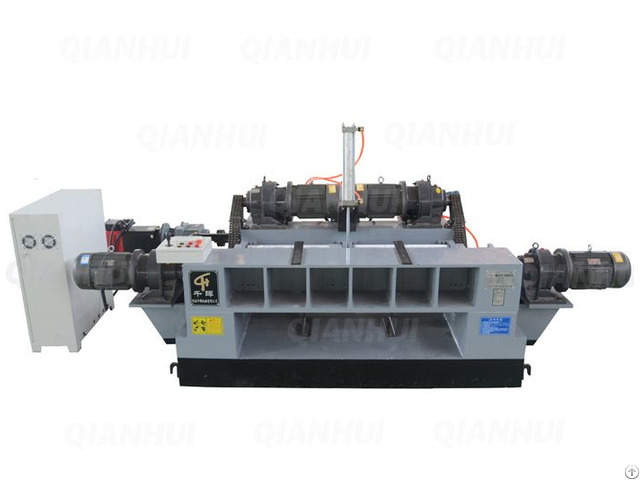

Heavy Duty Spindleless Veneer Peeling Lathe Speed 30-80m/min

Technical Specification:

Model No.

BX1400A-8 Max Peeling Length 1300mm Knife Length 1400mm Max Peeling Diameter φ360mm Left Log Diameter φ28mm Peeling Thickness 0.6-5.0mm Peeling Speed 20-80m/min Motor For Rollers 5.5kw x 4 sets Motor For Feeding 11kw Servo Motor x 1 set Control System Inverter + PLC Knife Table Material Cast Steel Gearbox Reducer Type Hard Tooth Face Gearbox Reducer Dimension 4000x2100x1300mm Weight 5500kg Key Features:

1 - Heavy Duty: Heavy duty spindleless peeling machine, fit for eucalyptus, rubber wood etc hardwood logs.

2 - Servo System: Servo motor for feeding and servo drive control, accuracy and service life is better than normal motor and normal inverter drive.

3 - Cast Steel: Knife table made of cast steel, much more stronger than welding structure

4 - Double Screw Nut: Each side two screw nuts, front and rear screw nuts, which makes the feeding more stable and balance is better, and the accuracy of veneer will be much better .

5 - Hard Teeth Face Gearbox: Hard teeth face gearbox reducers are used for rollers and for feeding, stronger than cycloid pin wheel reducer.

6 - Sufficient Motor Power: 4 sets of 5.5kw motors are used to drive the rollers, which can suppler bigger force and can peel different kind of hardwood logs .

7 - High Rigidity Rollers: Rollers are quenched and chrome plated, rigidity is better and harder, service life longer .

8 - Speed Variable: Rollers are controlled by big inverters, the speed adjustable from 0-80m, peeling thickness range 0.6-5.0mm

9 - New Type Bearing Bracket: Roller bearing bracket open-design, convenient to change bearings .

10 - Bearings Well Sealed: All bearings are attached with seals, which makes the bearings better lubricated and can be used for longer time .

The log peeling machinery is suitable for rubber wood, hardwood logs etc.

If you have any questions on our wood veneer peeler, please contact us as soon as possible.

We will give the professional answers.
