Heavy Duty CNC P.T.P.

Machining Center with ATC and Gang Drilling

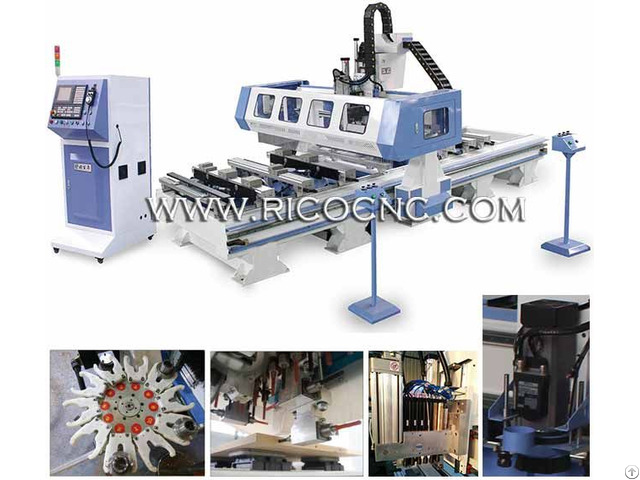

Model: PTP1325V This is a heavy duty point to point woodworking cnc machine center, configured with a multi-functional drilling unit, which has 7 vertical drills, 2 pairs of horizontal X direction mills, 1 pair of horizontal Y direction mills.

It is mainly used for panel furniture manufacturing, such as doors, cabinets, closet, etc.

CNC Machining Center with PTP Working Table Main Configuration:

1 - 9kw Italy HSD/Hiteco ATC spindle (HSK 63F cone)

2 - Taiwan syntec control system

3 - Japan YASKAWA servo motor

4 - PTP vacuum type table

5 - Italy HSD 7+2+1 drilling attached CNC P.T.P.

Machining Center with ATC Feature:

1 - Adopt Italy HSD Boring Head, it has vertical boring head+horizontal boring head.

So it is appropriate for side working, like side drilling, slotting, milling, etc

2 - Disc type ATC System, magazine capacity 10 tools, tool changing time just need 8 seconds.

3 - Double working position design.

One side is machining, the other side is up-down loading, improving the efficiency and capacity greatly.

4 - Fixed type Pneumatic pump be used for correct the carved wood’s location, and can also fixed carved wood as clamp through pneumatic type.

And working table material adopt compact grade, these advantages are wearable, pressure-proof, never deformed.

Professional designed vacuum groove can suction material instant and can afford heavy duty cutting.

PTP Gang Drilling Machining Center Parameters: Type PTP1325V Table area 1350*3000mm Working area 1300*2500*200(mm) Travelling speed 60 m/min Cutting speed 25 m/min(MAX) Spindle parameters HSD/Hiteco air cooling 9.0KW 24000rpm Controller OS SYNTEC Driving system YASKWA Working voltage AC380V/3PH/50HZ Electrical accessories Taiwan Delta VFD/French Schneider Driving system Taiwan HIWIN rail/Taiwan TBI ball screw Table structure China Adsorption+suction cup Blanking transfer Belt drive Driling units 7 Vertical, 2 Horizontal-X, and 1 Horizontal-Y, Italy imports Vacuum system 7.5KW Vacuum pump Weight 2.5T PTP CNC Machining Center Suitable industry:

Office furniture, wood cabinet furniture and furniture customized etc.
