CNC Pressure Foot Spindle Clamping Hold Down System for CNC Router

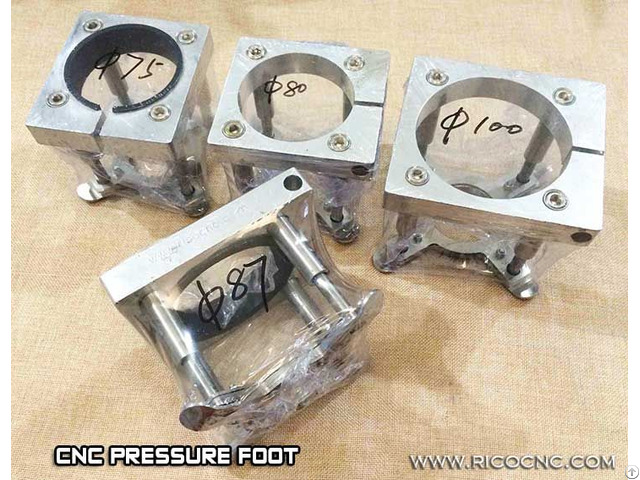

Model: spindle diameter 125mm/120mm/100mm/87mm/85 mm/80mm/75mm/73mm/65mm etc For thin work piece processing, it is not easy to be fixed by clamps and screws.

Usually workers press the work piece when the cnc router is working.

It is very dangerous.

Also the gas or the dust of the workpiece are very harmful to the workers' health, some will cause cancer.

Now a good cnc router accessory tools will be very helpful--cnc pressure foot hold down will achieve automotive clamp.

Fix the pressure foot on the cnc router spindle, so pressure foot move with the spindle, and press on the workpiece automatically, keep the workpiece not move up and down.

Make the carving precision accurate, the carving product 100% qualified.

No need people to press on the workpiece any more, save labor and good to health.

Spindle Pressure Foot Applications:

Suitable for any kinds of Acrylic, thin aluminum board, PCB prototyping, printed circuit board routing, plastic board, PVC board, EVA board, double color board, MDF board, etc, especially for panels within 10mm thickness.

CNC Router Hold Down System Instructions:

Fix the cnc pressure foot on the spindle, adjust the height, then fixed the holding screw tightly is ok.

How to adjust the height? Working on panals which is within 3mm, just need keep the bottom of the auto pressure foot and the cutter bit nose at the same level.

If panel is 4mm-6mm, make the bottom of the bottom of the cnc automatic pressure foot 2-3mm over the cutter bit end.

The rest can be done in the same manner.

Some time for the big panel, we have to use some double faced adhesive tape or instant adhesive to help fix on some key point areas.

DIY CNC Hold Down Features:

Material: Stainless steel

Diameter: 100mm (80mm/65mm, optional)

Outline square: 132*120mm

Height: 102mm

Bottom inner circle diameter: 49mm

Flexible distance: 28mm Here is the video link about the automatic cnc pressure foot working, welcome to check.

Different spindle, the spindle diameter is different.

So different size cnc router spindle automatic pressure foot is needed.

Please contact us to get more information.
