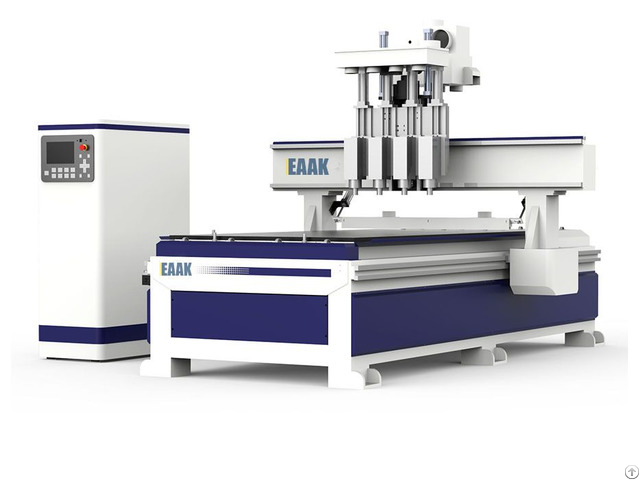

China Wood Engraving Cutting Cnc Router Machine - China

Feature:

The mechanical and electrical components of this model are international top products, and the double-track bilateral transmission machine is a heavy-duty machining machine.

This machine is suitable for a wide range of complex product processing or diverse processing, with a wide range of functions: boring, drilling, cutting, leading edge and so on.

Application:

1, Furniture: wooden doors, cabinets, panels, office furniture, tables, chairs, doors and windows.

2, Wood products: speakers, game cabinets, computer desks, sewing machines, musical instruments.

3, Decoration industry: boring and milling of soft metal plates such as stone, graphite, acrylic, PVC, MDF, artificial stone, plexiglass, plastic, and copper and aluminum.

Parameters of EAAK four-step CNC cutting machine:

1 Model EK1325 fours heads

2 X, Y axis travel

1300x2500mm

3 Z-axis travel

200mm

4 Maximum operating speed

30m/min

5 Maximum engraving speed

25m/min

6 Resolution

0.01mm

7 Repeatability

25m/min

8 Clamping method

Vacuum adsorption

9 Engraving instruction

G code

10 Control System

Mountain dragon

11 Operating Voltage

AC380V/50Hz

12 Spindle power

9KW

13 Spindle speed

1000-24000rpm/min

14 Way of working

Servo Taiwan rack

15 Running rail

Triaxial full square rail
