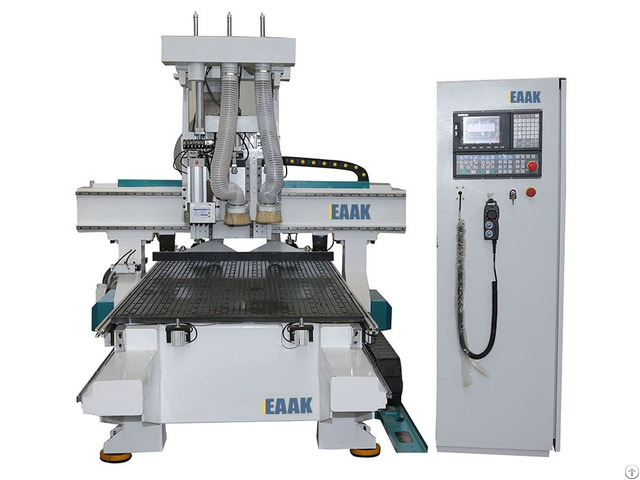

China Eaak Woodworking Cnc Router Machine - China

Feature of wood engraving machine:

The mechanical and electrical components of this model are international top products, such as the vacuum system and transmission system in Germany, the servo drive system in Japan, the original imported spindle from Italy, etc.

; the automatic knife changing system and the tool magazine capacity of 8 The tool change time is only 2 seconds; the double-track bilateral transmission machine is a heavy-duty machining machine.

This machine is suitable for a wide range of complex product processing or various processing, with a wide range of functions: boring, drilling, cutting, side milling, leading edge and so on.

A variety of models are available.

Application of wood cnc router:

1 Furniture: wooden doors, cabinets, panels, office furniture, tables, chairs, doors and windows.

2 Wood products: speakers, game cabinets, computer desks, sewing machines, musical instruments.

3 Decoration industry: boring and milling of soft metal plates such as stone, graphite, acrylic, PVC, MDF, artificial stone, plexiglass, plastic, and copper and aluminum

Parameters of CNC carving machine:

1 Model EK1325 fours heads cnc engraver

2 X, Y axis travel 1300x2500mm

3 Z-axis travel 200mm

4 Maximum operating speed 30m/min

5 Maximum engraving speed 25m/min

6 Resolution 0.01mm

7 Repeatability 25m/min

8 Clamping method Vacuum adsorption

9 Engraving instruction G code

10 Control System Mountain dragon

11 Operating Voltage AC380V/50Hz

12 Spindle power 9KW

13 Spindle speed 1000-24000rpm/min

14 Way of working Servo Taiwan rack

15 Running rail Triaxial full square rail
