Bcm1325e Cnc Router Made In China - China

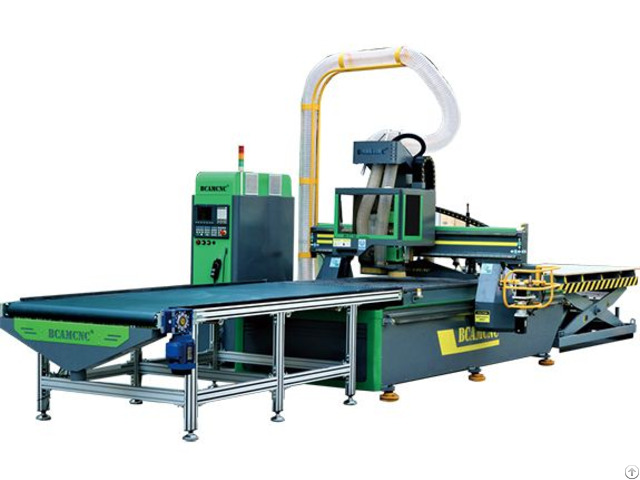

BCM1325E cnc router made in China bcamfer06

Models: BCM1325E Application: Panel Funiture, Wood&Wood based materials, Plastic&Non ferrous Metarials Leadtime: 15-20days

Certificate: CE, ISO Voltage: 380V/3P/50HZ, 220V/1P/50HZ Customized: Size Can be customized Warranty: 3 years

Supply Ability: 10 Sets/Month

Oversea Warehouse&Office: Duba i, Wittingen Germany, Birmingham UK Advantage:

1 - The E series has an automatic loading panel lift system, an automatic advance unloading conveyer table, an extremely strong welded steel beam frame with a rotary tool changer on the gantry, 13 HP router spindle and a 9 spindle drilling head.

Like all CNC built by BCAM the BCM1325E offers better performance, quality, components and features than any competitive machine in its class.

The E series is extremely fast and allows the operator to simply stand at the end of the unload table and remove cut parts as they unload from the machine.

2 - The loading lift system allows the operator to load a lift of panels at one time on a heavy steel platform with automatic rise indexing.

Using a vacuum cup loading system the machine pulls each panel onto the CNC table for machining while at the same time unloads the previous machined parts and vacuums the machining table clean at the same time.

The lift will automatically index the next panel to the correct height for the four 6" vacuum cups to pick it up for the next machining process.

The machined parts are pushed onto an automatic advancing conveyer table which senses the panels to be removed.

Once the parts at the end of the conveyer are removed by the operator the conveyer will automatically advance the next cut parts to the end of the table and wait for the operator to remove them.

An optional printer is available to label parts for tracking throughout the customer's factory.

3 - The base of the machine is a 6000 pound very heavy duty welded steel beam floor model frame.

The phenolic vacuum table is then mounted to the steel frame for an excellent working surface and comes with an MDF spoilboard machined at the factory and bolted down to the table.

We use plastic bolts to ensure no damage to cutters from contact.

The spoilboard is bolted to the table to ensure stability during the loading and unloading process.
