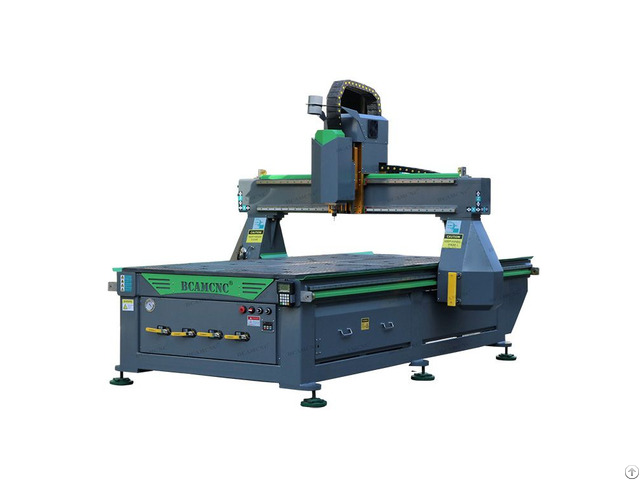

Bcam Wood Cutting Engraving Cnc Router Machine For Woodworking Cabinet Furniture Mdf - China

Product Description Configuration Working area: 1300*2500*200mm|4′*8′

CE standard

3.0kw water cooling spindle(Option: 5.5kw, 6.0kw, 7.5kw Quick-Release Spindle) 8mm Heavy duty frame Active safety system X, Y axis gear transmission, Z axis Taiwan TBI ball screw transmission Taiwan Hiwin 25 rails Vacuum table+T-solt Schneider Electronic spare parts Automatic lubrication system Rich auto A11 control system Japan Omron limit switch High torque stepper motor and drivers Delta Inverter 3.7kw 3.0kw double dust collector +Dust collector pipe+Dust collector support Tool height sensor Industrial water Chiller CW3000 Standard box of tools Optional Vacuum pump Oil free pump 5.5Kw

Air pump 5.5Kw

CAM Software VCarve/VCarve Pro/ArtCAM/UcanCAM, etc.

Feature 1 - The frames is welded by thick-walled rectangular steel and tempered at high temperature

2 - No deformation, high rigidity, with over 3 tons of load-bearing frame

3 - Taiwan imported rails and sliders, HIWIN, high precision, low noise, durable.

4 - Transmission parts are imported rack with high precision and speed.

5 - The machine cable and Electrical adopts international famous brand, which makes the machine works in steady and high efficient condition.

6 - Unique domestic water circulation system, energy saving and environment protection.

7 - Newest design of triaxial enclosed totally, dustproof, waterproof.

Technical Parameter Working size 1300*2500mm X, Y, Z transmission X, Y axis gear transmission, Z axis Taiwan TBI screw transmission Guide rail Taiwan Hinwin 25 liner guide rail Spindle water cooling spindle Spindle power 5.5kw Inverter Fuling inverter Spindle rotating speed 0-24000rpm/min Drive motor Leadshine M860 stepper motor Working speed 35m/min Voltage 220V/380V/50Hz/60Hz Operating system Weihong NK105 DSP system Command G Code Software Ucancam software, Artcam software, Option Interface USB Packing size 3200*2200*1750mm Working area 1300*2500mm Weight 2000kg More ATC Machine Details 1 - Machine structure Whole machine table adopts high strength thick steel pipe welded.

Whole working table cast by resin sand.

The annealing and other heat treatment methods ensure that the whole structure is tested to the limit for sturdiness and reliability.

The whole machine made by CNC gantry machining center to ensure the structure basic precision.

After strict quality control, the structure treated with deoil and pain process.

After various process of painting, the construction can be used for assembly.

2 - Changsheng Water-cooling spindle Affordable, low noise, good water cooling, suitable for hard wood, stone, soft metal high temperature operation.

3 - RichAuto A11 DSP control system The handle operation does not require a computer connection, especially for beginners.

4 - TBI imported ball screw TBI imported ball screw has reached level C grinding.

It is durable, with low friction coefficient, low noise.

With high positioning accuracy, flexibility, stability and other advantages.

With heat treatment, so it is with advantages of antioxidant, anti-corrosion, with thousands of hundreds of test, the lifetime is up to 10 years.

1 - Leadshine servo and drive

China's well-known brand, speed up to 30%, good cooling effect, relatively smooth running vibration, saving power.

Tool sensor:

Normally closed self-test line, high precision measuring instrument, protection function, the tool is hard alloy, the hardness is very high; Active safety system: This is our company's independent research and development, which can effectively protect the safety of the staff.

When the machine have accident, we can 100% effectively hit the polished rod and stop the machine.

The traditional emergency stop switch is too small.

Application Stone working: engraving various granite, bluestone, marble, gritstone, soapstone and etc.

Furniture decoration, Musical Instruments industry, wooden crafts industry, large area plank plane sculpture, solid wood furniture, annatto furniture, real wood art mural, density board paint-free door, Wood composite door, wardrobe, cabinets, beside cupboard, screen engraving and so on.

Company Contact:

• Posted By: BCAMCNC

• Phone: 15165129096

• Address: Jinan,Xingxiu road., JInan , shandong , China

• Email:

• Website: https://www.bcamcnc.com

• Business Description: cnc router,laser machine,fiber laser machine,plasma machine,woodworking machine

  BCAM CNC is a high-tech enterprise integrating R&D, production, sales and service in the CNC engraving machine industry.

  The company's headquarters is located in Jinan, the world's largest engraving machine manufacturing and export base, with branches in Shanghai, Dongguan and other places.

  At present, the company has a modern production base of more than 6000 square meters and import and export trading branches, manufacturing and selling large-scale woodworking engraving machines, advertising engraving machines, stone engraving machines, plasma cutting machines, laser engraving and cutting machines, and a series of high-end CNC products .

  The company's products are widely welcomed by the market and have been widely used in more than 50 industries such as advertising, woodworking, gifts, metal, molds, glass, and electronic products.
