Needle Punching M C Techinical Description Of Equipments - China

needle punching M/C techinical description of equipments

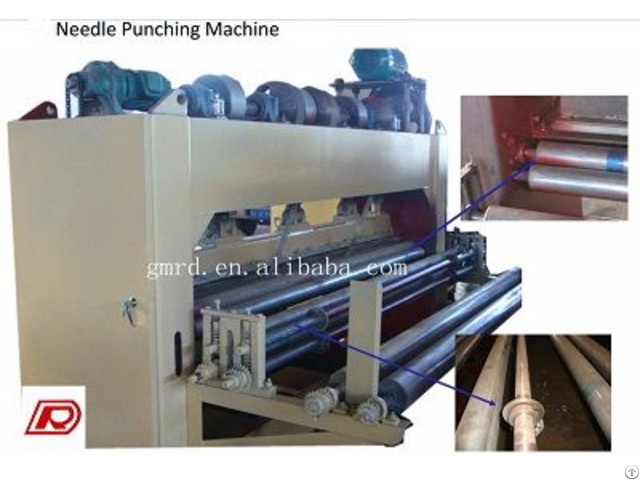

Needle punching machine NO ITEM DESCRIPTION

1 Model GMZ-280M▼/▲

2 Dimension of M/C L3900W1400H2025(mm) / L3900W1780H2025(mm)

3 Weight 7200KG/7197KG

4 Total power 12.35kw

5 Main motor 7.5KW; 3 phase AC power 50Hz/

6 Product density 50g/㎡-850g/㎡(depend on the raw material type also product requirements and No of units)

7 The average output 360kg/hour(Working at width 2500mm&300g/㎡under running normal)

8 Protection Main motor overload protection

9 The control mode Constant power & Inverter control

10 Working width 2800mm/adjustable/cut at mid/product width more than 2500mm

11 Needle plate Galvanized-faced ; with 3500holes/㎡

12 Bearing KOYO/Or according to the customer's requirements

13 Type of holes Diameter1.83mm/An inverted cone

14 Electrical components ZhengTai or SIEMENS or according to customer requirements

15 Inverter ZhengTai

16 Fabric speed Recycled material or man-made fiber material or mixing material

17 Fabric speed 0.5-11m/min(depend on the raw material type also product requirements)

18 Trip of needle 40 mm or according to customer requirements

19 Transfer roller Diameter: 168mm/ Chromium plating process/high quality 50# steel

20 Needle plate High strength aluminum alloys and shock shape /totally 18 mm thickness

21 The main shaft & other work shaft Diameter: 80mm/ Dynamic balance and strength strengthening heat treatment/high quality steel

22 Print Color According to customer requirements

23 The control cabinet and panel Digital display instrument, and equipped with knob regulator, professional electric schematic diagram

24 Note 1 - CNC cutting equipment and machining center equipment will be used in the manufacture of the machine.

2 - All rotating shaft through dynamic balance test.

3 - Direction：▼&▲Th e round-trip distance of the needle can be adaptive adjustment according to the thickness of the raw materials.

4 - Shaking range must be less than + / - 0.55 mm, and does not influence the movement of the needle and alignment need hole (based on the correct installation and the base must be in the same plane under a high speed over 40Hz)
