Dw200 Heavy Duty Ring Woven Press Felt Loom - China

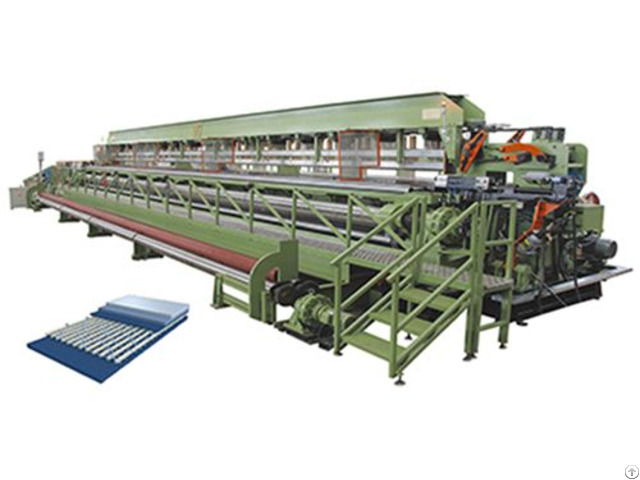

DW200 Heavy Duty Ring Woven Press Felt Loom

Paper Machine Clothing Loom Factory

Paper Making Rapier Loom Supplier

Thisis applicable to weave high-strength paper making woven pressfeltwith true selvage, especially for ring woven press felt.

1, Range of Polyester Monofilament: 0.100.5mm or 0.2mmנ6ply.

2, Weft density: 50360 picks/10cm.

3, Warp density: 60180 ends/10cm.

4, Reed Width: 10m-20m.

5, Economic Speed: 25-30rpm.

6, Motor power: about 40KW.

7, Weight: About 80T.

1, Framework: The main wallboard adopting iron box structure, the complete machineinstalled on the whole basement.

2, Dryer Fabric Paper Making Rapier Loom Main Drive: Adopting bilateral motor two-sided coaxial drive, motor power is 11KW, double pneumatic clutch and the main driving box adopts ellipsegear variable.

3, Shedding Mechanism: Adopting bilateral broda blade side-drawing dobby device, 12 heald frames.

4, Weft Insertion Mechanism: Adopting hydraulic picking mode, two-sided 2shuttle box shuttle-changing weft selector.

5, Beating-up Mechanism: Adopting multi-fissions combined crank four-linkage variable speed weft beating.

6, Take-up Mechanism: Adopting electronically control three-roller positive take-up, the upper rollers are separatelydriven by servomotor.

7, Let-off Mechanism: Adopting external central positive let-off (single warp beam, flange-separating warping).

8, Web-rolling Mechanism: Adopting external superficial web rolling driven by independent torque motor.

9, Lubricating System: The high-density Paper Making Rapier Loom adopts automatic grease lubrication and hand oil lubrication.

10, Controlling System: With OMRON PLC computer control system, the complete machine can freely set up various parameters and automatically display faults.

More information please view here.
