Yd2513 R5 Uv Flatbed Inkjet Printer Mental Sheet Printing Machine - China

Product Abstract:

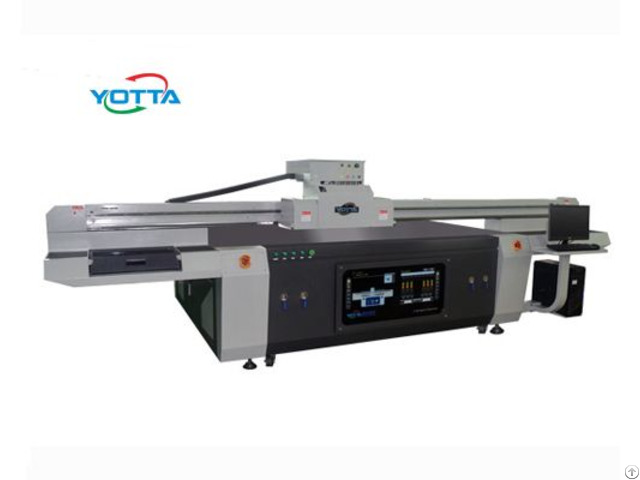

With high printing performance, YD2513-R5 UV flatbed printer, which is designed for high-end products, can achieve high-quality on a wide range of materials.

Adopting internal heating industrial Ricoh Gen5 print head, the printer delivers brilliant colors and high print resolution in 600*2400dpi.

With high print speed of 36M2/h (4PASS), YD2513-R5 can meet your high-precision and production efficiency requirements.

This printing machine is upgraded on function design.

It applies drawer type ink barrel unit, which greatly facilitates the ink exchange and ink system maintenance.

Plus a variety of easy-to-use features, greatly improve productivity.

What’s more, it’s working performance is stable, idea for long-time working, 24 hours running.

Suitable materials

Rigid materials: Glass, Ceramic, Metal plate, Wood, Acrylic panel, KT board, PVC sheet, Melamine sheet, Marble board, etc.

Flexible materials: Paper, Plastics film, Leather, Textile, etc.

Model YD2513-R5

Print size 2500*1300mm

Print head Ricoh-Gen5 grey scale degree piezo print head

Print resolution 600×2400 dpi

Print speed 4 Pass, 38 M²/h; 6 Pass, 29 M²/h; 8 Pass, 22 M²/h;

Print mode unidirectional and bidirectional

Ink color LM, LC, Y, M, C, K (Optional)

Special ink UV white ink or UV varnish

Ink type Environmental UV curing ink (NO VOC)

Number of head 3-8 pcs

Materials thickness 100mm max.

Materials type Rigid and flexible materials

Software PhotoPrint, Seeget

Input format Adobe Postscript Level 3, PDF, JPEG, TIFF, EPS, AI

Power requirement 220V/AC(±10%), 50/60HZ; 6KW

Printer weight 1600KG

Printer size 4446*2115*1355(mm)

Working environment Separate, little sunlight, ventilated workshop.

Temperature: 18℃~30℃(64℉~86℉) Humidity: 30%~70%(Non-condensing) Ventilation equipment: Suggest Overhead exhaust fan, displacement 600 cfm
