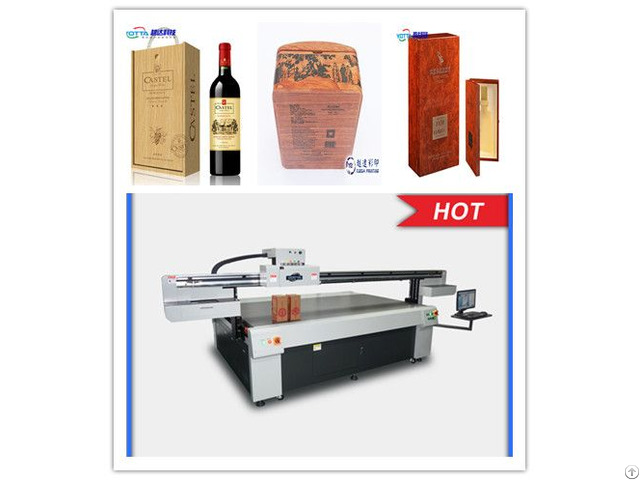

Yd2513 35ra Uv Flatbed Printer Digital Art Ceiling Printing Machine - China

Description

YD2513-35RA is an upgraded printer.

It has been upgraded on the print height of 340mm.

Adopting grey level Ricoh Gen4 internal heating industrial print head, variable droplet technology makes it possible to print on a range of substrates with high precision and brilliant color.

The print head number can be increased according printing requirements, which significantly increases productivity.

It will be a huge advantage that apply it in outdoor advertising, personalized gift and other industries.

Suitable materials

Rigid and flexible materials, including but not limited to glass, ceramics, wood, acrylic, PVC, plastics, metal etc.

Model YD2513-35RA UV PRINTER

Print size 2500*1300mm

Print head Ricoh-Gen4 grey level piezo print head

Print resolution 600*1200dpi

Print speed 4Pass 25㎡/h

6Pass 17㎡/h

8Pass 13㎡/h

Print mode Unidirectional and Bidirectional

Color system LM, LC, Y, M, C, K(Optional)

Special ink UV White color ink or UV varnish

Ink type Environment protection UV-curable inks (NO VOC)

Number of nozzles 3-8pcs

Print height Up to 340 mm

Materials type Rigid or Flexible

Application Glass, acrylic, wood, Ceramic, Metal, PVC board, Corrugated Board, Plastic etc.

RIP software PhotoPrint, Seeget

Input format Adobe Pistscript Level3, PDF, JPEG, TIFF, EPS, AI

Power requirement 220V/AC(±10％)50/60HZ 4.8KW

Printer weight 1200KG

Printer size 3620mm [L]*2080mm [W]*1200 mm [H]

Working environment Separate, little sunlight, ventilated workshop Temperature: 18℃—30℃ (64℉—86℉) Humidity: 30%～70% (Non-condensing) Ventilation equipment : Suggest Overhead exhaust fan, displacement 600 cfm

Package N.W./G.W. 100KG/1300KG

Printer Size 3620*2080*1200mm

Packing Fumigation-Free Wooden Case

HS code 8443321300

1 - About the price and quality?

We can not say we are the best supplier, but we are honesty for our quality and price.

Good quality is our first rule, and good service is our mission.

We produce machines as 5S management rules, and ISO standard.

2 - Why do you choose our factory?

We produce flatbed printing machine, digital flatbed printer is a new product in printing industry, it can

print on the surface for various kinds of flat objects directly, such as crystal, leather, glass, metal, ceramic

tile, PVC, PP, PE and so on.

Any pictures can be printed on the surface of the subjects by the printer with

high resolution, it is the fastest flatbed printer on the current market.

And we will keep you with a best

service, give us a chance, also give your a chance to know this field if you really want to know this printer.

3 - What is the printer operation?

a.

Through a digital camera or scanner to get File sources of pictures.

b.

Through the computer images to typesetting modified document layout.

c.

Through the universal printer output files to print.

d.

Print objects requirements.
