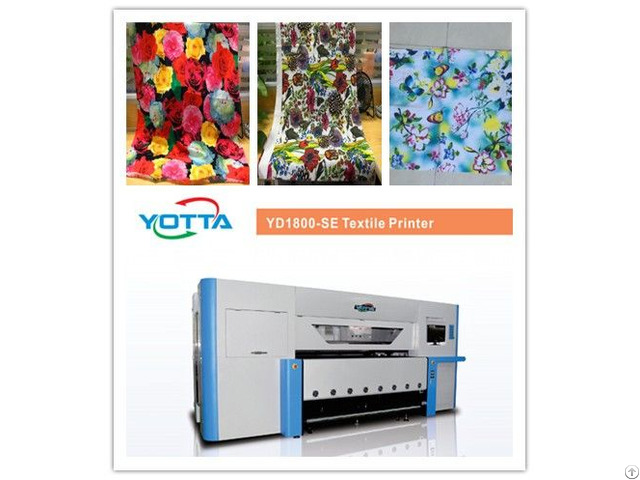

Textile Printing Machine Yd1800 Se Yotta - China

Model YD1800-SE

Print Head 6pcs StarFire1024( with internal heating, inner loop fuction)

Output speed 120m/h 3 pass

Print width 1.8m

Ink type Reactive ink

Fabric type Weave or knit cotton, flax, silk, polyester, cashmere, towel ect.

Height adjustable 0-30mm adjustable

Ink Color Cyan, magenta, yellow, black, sapphire blue, orange, red, gray

RIP software Professional textile printing RIP Software

Injection frequency 40KHz

Print resolution 400dpi

Image Type JPEG/TIFF/BMP file format, RGB/ CMYK color model

Power 15KW

Power requirement 380VAC ± 5%, three-phase five-wire, 50HZ ± 2%

Working environment Temperature 20-30 ℃, relative humidity 50-80%

Air Compressed Air flow ≥0.6m³/min, pressure ≥8kg

Printer size(L/W/H) 4.3m*1.9m*1.9m

Printer weight 2500kg

Product Description

1.8 pieces SG1024 industrial level stainless steel printheads: the industrial level printheads are widely used by digtial printing factory in Europe.

Suitable for continuous, batch printing and continuous printing production;

2 - Width 1.8m, 2.6m and 3.2m optional: suitable for printing clothe and home textile field with different width requirements;

3 - Professional conduction band of fabric conveyor system: it can transfer the cloth without tension, suitable for spandex and Non-elastic cloth;

4 - Original automatic wiper system, its not hurt the nozzle;

5 - Conduction band automaticly washing and drying system;

6 - Conduction correction system;

7 - Media and retraction system, automatic constent tension Unwinding and rewinding system, wrinkle technology is high-efficiency and stable;

8 - Drying system: Multiple wave infrared heaters, instant drying cloth, adopts printing and drying, linkage control mode, high-effiency and stable, easy operation, Independent drying system optional.
