Lxz Type Flexible Pin Coupling - China

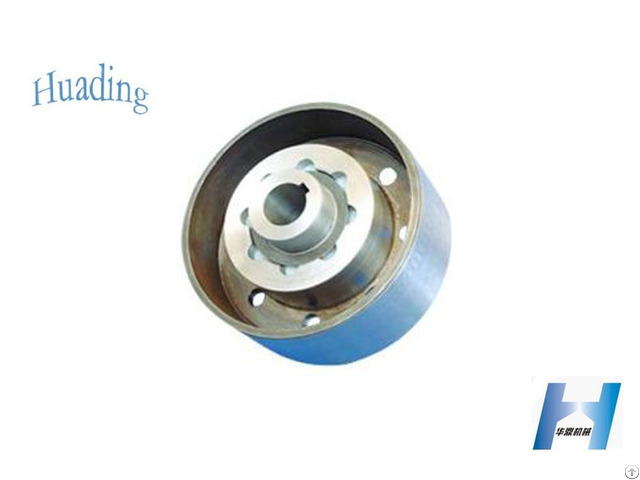

LXZ Type Flexible Pin Coupling

Flexible Pin Coupling

Model: LXZ Type

Norminal Torque: 560N.

M - 35500N.

M

Allowed Rotation Sppeed: 5600rpm - 950rpm

Connection: Shaft hole

Shaft Hole Diameter(d1, d2, dz): 20mm - 180mm

Shaft Hole Length (L): 52mm - 302mm

Applications: Metallurgy, mining, lifting, transportation, petroleum, chemical, ships, textile, light industry, agricultural machinery, printing machines and pumps, fans, compressors, machine tools and other mechanical equipment and industry shaft transmission.

LXZ type flexible pin coupling is suitable for all kinds of coaxial transmission system.

The material of elastic element (pin) is generally nylon 6, which has high strength and abrasion resistance and is suitable for corrosive environment.

Nominal torque 560 -35500N.

M, working temperature -20 ℃ - +70 ℃.

The utility model has the advantages of simple structure, cushioning shock absorption performance and certain axis offset compensation capability, and is suitable for occasions where the noise is not controlled.

Allowable compensation amount of radial direction is 0.15-0.25mm and angle is 0.5 °.

Note:

1 - Semi-coupling selects the forged steel or cast steel;

2 - Shaft hole type(J, J1, Z) and length(L, L1) are according to the requirement;

3 - Rotational inertia and mass(kg) are approximate value.

4 - Brake wheel can select the integral type.

Huading is a professional manufacturer of SWC Cardan Shaft, Drum Gear Coupling, Flexible Pin Coupling, Cardan Shaft, Gear Coupling, Flexible Coupling, Rigid Coupling etc.

Welcome to contact us to know more.
