Lx Type Flexible Pin Coupling - China

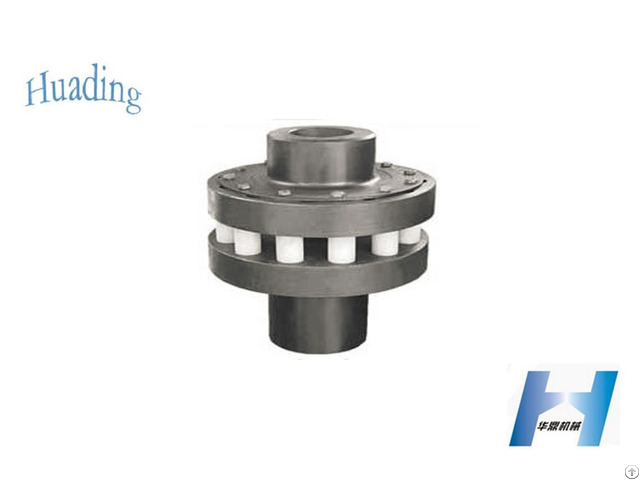

LX Type Flexible Pin Coupling

Flexible Pin Coupling

Model: LX Type

Norminal Torque: 250N.

M - 180000N.

M

Allowed Rotation Sppeed: 8500rpm - 950rpm

Connection: Shaft hole

Shaft Hole Diameter(d1, d2, dz): 12mm - 340mm

Shaft Hole Length (L): 32mm - 550mm

FLEXIBLE PIN COUPLING Applications: Metallurgy, mining, lifting, transportation, petroleum, chemical, ships, textile, light industry, agricultural machinery, printing machines and pumps, fans, compressors, machine tools and other mechanical equipment and industry shaft transmission.

LX type flexible pin coupling is suitable for all kinds of coaxial transmission system.

The material of elastic element (pin) is generally nylon 6, which has high strength and abrasion resistance and is suitable for corrosive environment.

Nominal torque 250 -180000N.

M, working temperature -20 ℃ - +70 ℃.

The utility model has the advantages of simple structure, cushioning shock absorption performance and certain axis offset compensation capability, and is suitable for occasions where the noise is not controlled.

Allowable compensation amount of radial direction is 0.15-0.25mm and angle is 0.5 °.

Flexible Pin Coupling, LXZ Type Flexible Pin Coupling, LZ Type Flexible Pin Coupling Suppliers & Factory.
