Hengxiang Absolute Encoder Gray Code Output Up To 12bit Solid Shaft 8mm - China

price: 70.00 Dollar US$

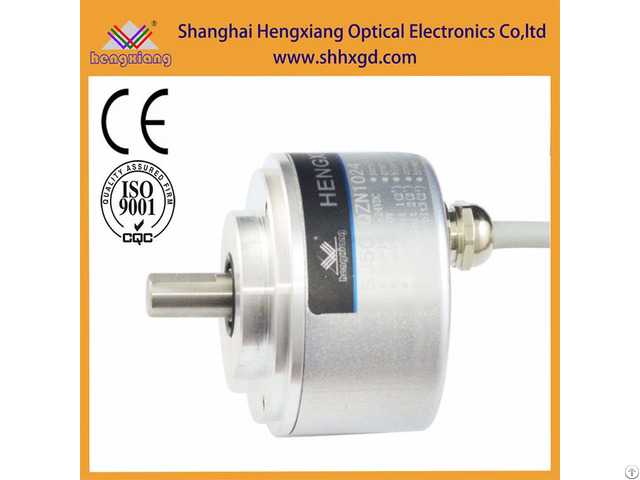

Hengxiang Absolute Encoder Gray Code Output Up To 12bit Solid Shaft 8mm

Products Photos Catalog Hengxiang Absolute Photos Catalog

1) Advantages 1, Certification: CE& ISO9001 & SGS.

2, Feature: microminiature, logical compact configuration and easy to install.

3, Application: subminiature motor, small instrument, etc., for automation control SJ50- Series Encoder Specification Brand: HENGXIANG

External dimensions: External diameter: 50mm

Thickness: 45mm

Shaft diameter: 8mm(D shape)

Resolution: Up to 12bit(4096ppr) Count Direction: CW/ CCW Supply voltage: DC12-24V

Outlettype: Cable out from side;Cable out from side(with metal sleeve);Socket out from back

Output mode: Gray code without reading error 1 - NPN open collector output with low level available

2 - PNP open collector output with low level available

Environmental temperature Operating temperature: -20~+80° (Non icing)

Storage temperature: -25~+85° (Non icing)

Environmental humanity Operating and storage: 35~85%RH (non-condensing) Protection grade: IP65

Cable length: 1000mm Shell: Aluminium

Package: Carton box

Net weight: About 150g (with package)

Certification: CE


Company Contact:


  • Phone: 021-54613487-8019

  • Address: R301,Building7,Lane 115,No.1276 Nanle Road,SongJiang,Shanghai, songjiang , Shanghai , China

  • Email: Email


Published date: May 21, 2017

  • Business Description: Hengxiang encoder factory,

    Which can offer solid shaft, hollow shaft, incremental encoder, absolute encoder, quasi-sinusoidal encoder, etc.

    Revolution can up to 48000ppr.

    Max motor speed 24000rpm.
