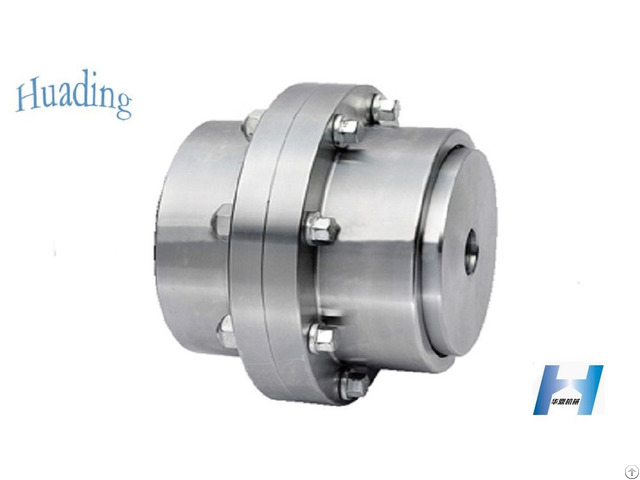

CL Type Gear Coupling

Gear Coupling

Model: CL Type

Norminal Torque: 710kN.

M - 1000000kN.

M

Allowed Rotation Sppeed: 3780rpm -300rpm

Connection: Keyway & Shaft hole

Shaft Hole Diameter: 18mm - 560mm

Shaft Hole Length (Y): 42mm - 8000mm

Applications: Metallurgy, mining, lifting and transportation industries, petroleum, chemical, general machinery and other heavy machinery shaft drive.

CL-type gear coupling is suitable for connecting two horizontal axis drive shaft, with a certain compensation for the relative deviation of the performance of the two axes, passing nominal torque of 710-1000000N.m. CL-type gear coupling is a removable rigid coupling, made by two shell with internal teeth and two external teeth of the sleeve, the sleeve and shaft are connected by key, the two shells connected with bolts Integrally, between the shell and sleeve with a seal ring.

Maintenance Method:

Gear coupling maintenance generally is in accordance with the following methods:

1 - Check the coupling tooth surface meshing situation, the contact area along the tooth height of not less than 50%, along the tooth width of not less than 70%, tooth surface shall not have serious pitting, wear and crack.
