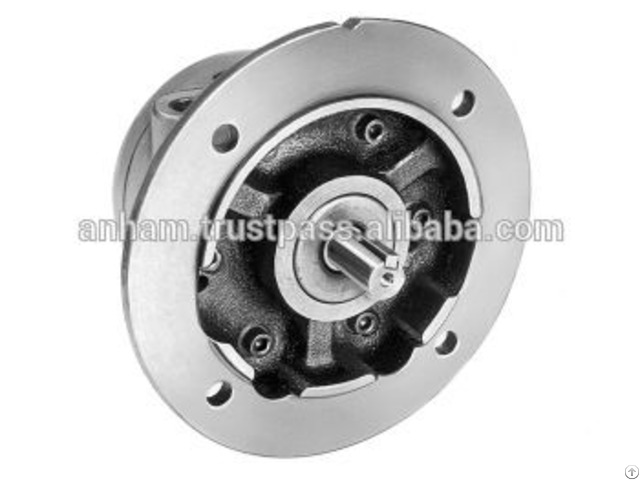

Air Motor For Chemical Factory - India

[How to Select an Air Motor] Air motors differ in many ways from other power sources.

These unique operating characteristics must be considered when selecting an air motor for a particular job.

It is easy to change horsepower and speed of an air motor by throttling the air inlet.

Therefor, the best rule of thumb for selecting an air motor is to choose one that will provide the horsepower and torque needed using only two-thirds (2/3) of the line pressure available.

The full air line pressure will then be available for overloads and starting.

Output Power vs.

Speed The output power of an air motor is relative to speed and to air line pressure.

Torque vs Speed

1 - An air motor slows down when load increases.

at the same time is torque increases to point where it matches the load.

It will continue to provide increased torque all the way to stalled condition, and it can maintain the stalled condition without any harm to the motor.

2 - As the load is reduced, an air motor will increase speed and the torque will decrease to match the reduced load.

3 - When the load on an air motor is either increased or decreased, speed can be controlled by increasing or decreasing air pressure.

4 - Starting torque of an air motor is lower than running torque.

While this provides smooth, low-shock starting, it is necessary to have additional air line pressure for starting under heavy loads.
